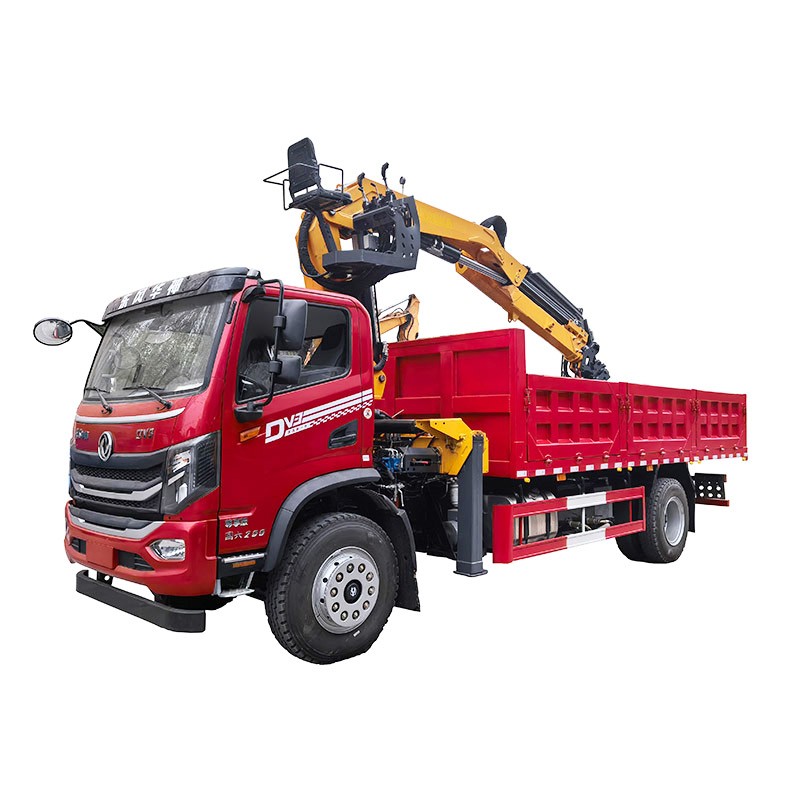

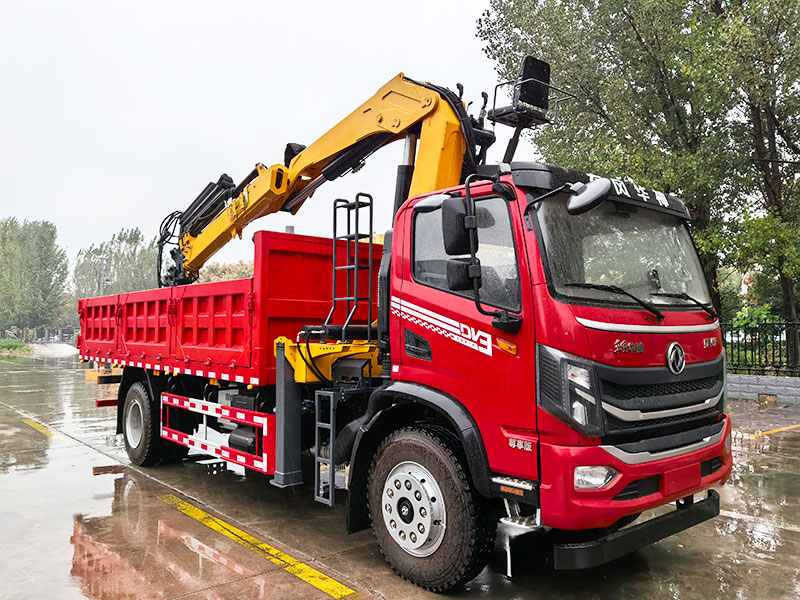

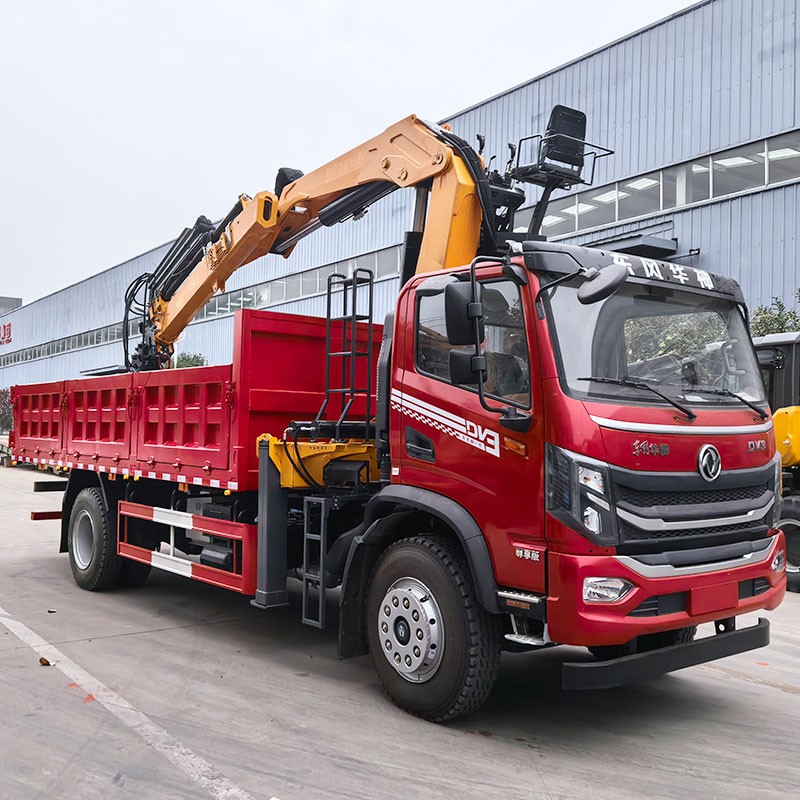

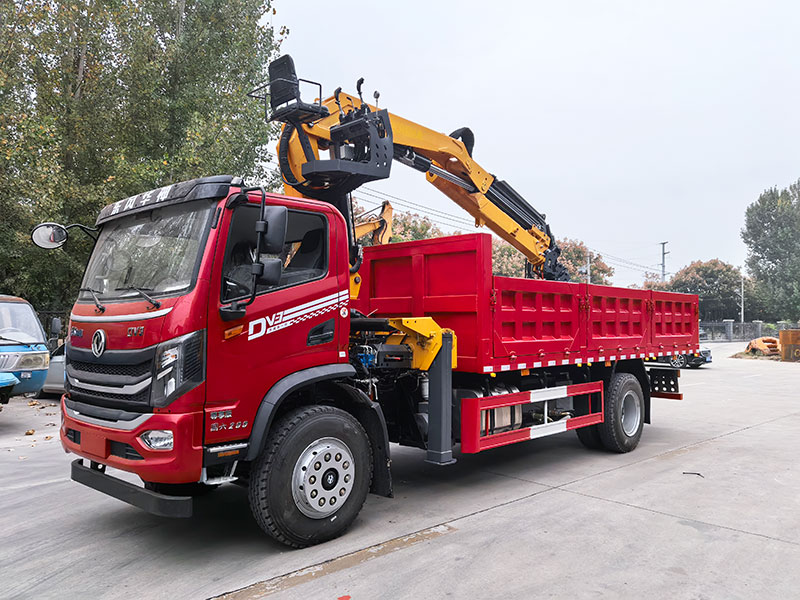

Dongfeng Huashen DV3 Truck With Wood Grabber

Product model：ZG-8300A
Maximum lifting weight (kg)：8000
Arm extension length (m)：8.3
Rotation angle (°)：360 (rotation
Rotating speed：1.8-2.5r/min

INQUIRY down load to pdf

Product Details

Product Tags

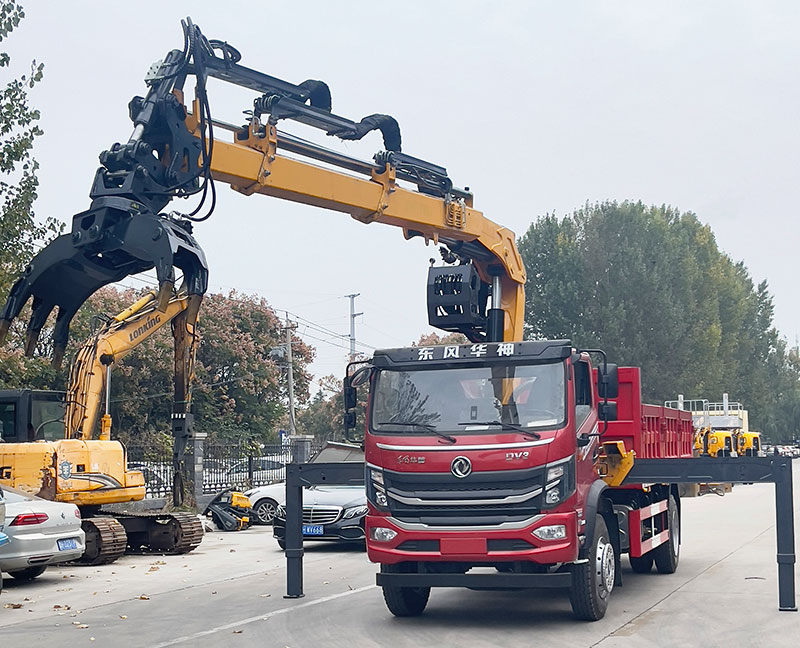

Dongfeng Huashen DV3 Truck With Wood Grabber

Product technical parameters

Product model	ZG-8300A
Maximum lifting weight (kg)	8000
Arm extension length (m)	8.3
Maximum lifting weight of fully extended arm (kg)	1200 (excluding self weight of gripper)
Number of boom expansion joints	2

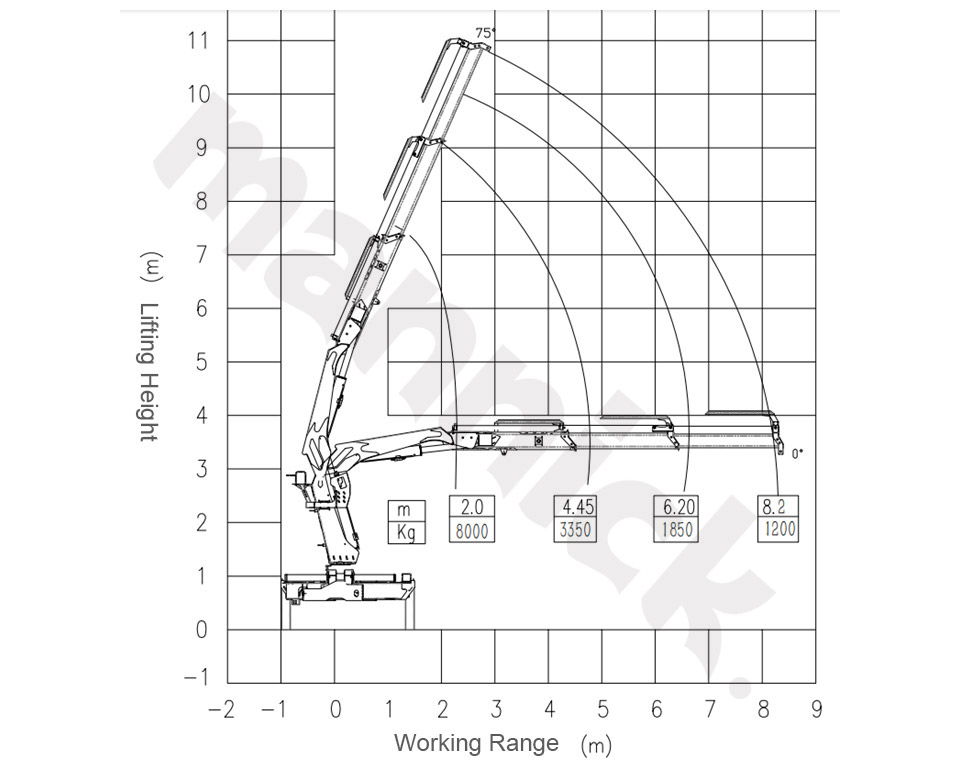

Maximum working radius (m)	8.3
Maximum lifting height (m)	11.2 (from the support surface of the crane)
Variable amplitude angle (°)	-20~+80
Rotation angle (°)	360 rotation
Rotating speed	1.8-2.5r/min
Rated working pressure (MPa)	23
Rated flow rate (L/min)	50-63
Engine (ps)	Yuchai 200 horsepower
Transmission	Fast 8-speed
Wheelbase (mm)	5100
Front/rear axle (T)	6T+11T
Frame (mm)	280 (three layer straight through)
Tire	1000R20 steel wire tire+spare tire
Vehicle weight (kg)	11800
Total mass (kg)	18000
Machine operation mode	Electric control one control three (wireless remote control optional)
Optional grabbing tools (four, six, 3+2 grabbing)	Optional self generating suction cup

Passengers allowed: 2.3 (actual number of passengers is 3)

External dimensions (length, width, height, mm): 9000 * 2500.2550 * 3750.3850.3950

Container dimensions (length, width, height, mm): 5500, 5800, 6000, 6100 × 2400/2450 × 600/800

Double top self dumping load-bearing cargo box

Other built-in configurations: equipped with original air conditioning, multiple locks in one, remote control center console, airbag seats, with driving recorder, sunshade, LED daytime running lights, functional steering wheel, front top miscellaneous box, integrated rearview mirror.

Equipped with a quick change connector for the gripper, installation and replacement of the gripper are simpler, more flexible, and faster.

Product Introduction:

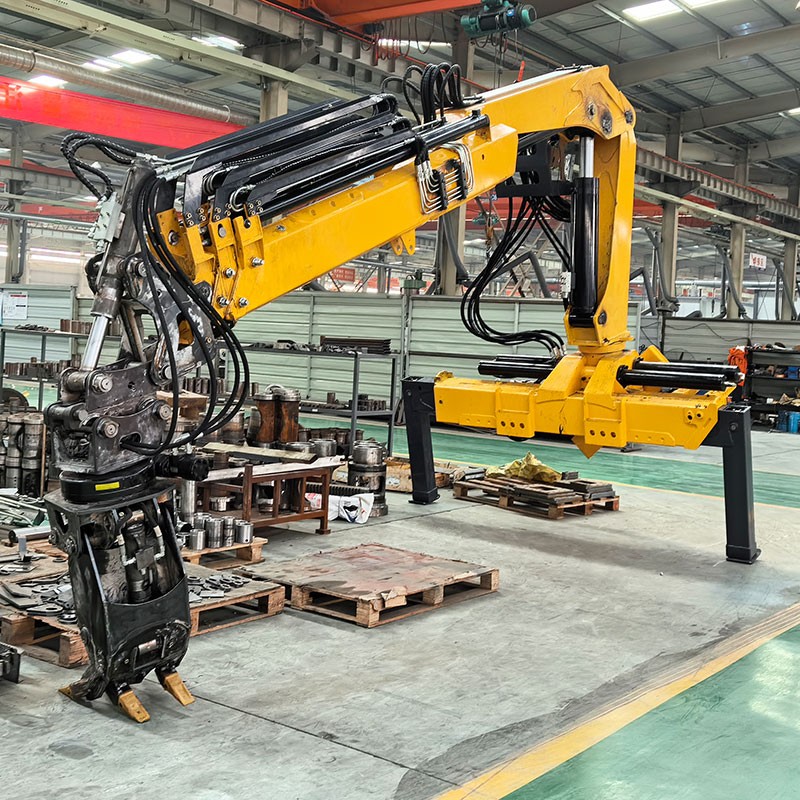

Equipped with a fully folding boom and a hydraulic telescopic arm that can be extended and retracted by 2 sections, the hydraulic telescopic arm can freely extend and retract under load.

1. Equipped with a gear rack and oil cylinder rotation mechanism, the rotation torque is greater, the speed is smoother and faster than traditional planetary rotation reducers, the impact resistance is durable, and there is no shaking;

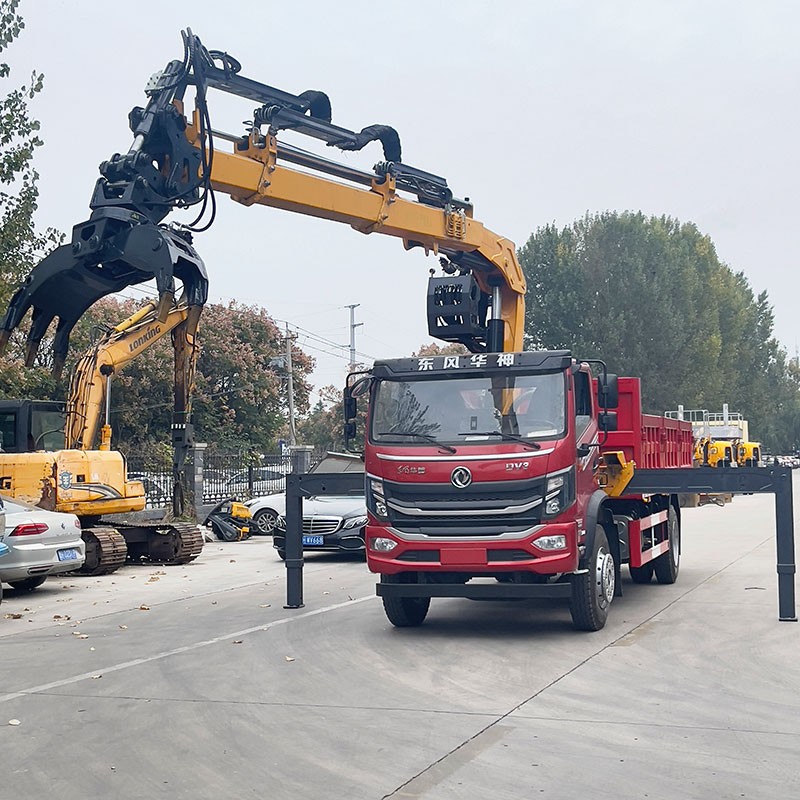

2. Two fully hydraulic large-span support legs, double chamber box structure horizontal telescopic support legs+upper and lower vertical hydraulic support legs.

3. All actions of variable amplitude lifting arm, boom extension and retraction, boom rotation, lifting winch, and gripper opening and closing are equipped with locking valves to increase safety protection;

4. Optional installation of hydraulic winch;

5. Equipped with a 50+63L/min large displacement dual pump system as standard, it improves work efficiency and can achieve synchronous operation.

6. High power fully automatic start stop intelligent temperature controlled hydraulic radiator, automatically opens the heat dissipation function when the hydraulic oil temperature is too high, effectively controlling the hydraulic oil temperature and increasing continuous operation capability.

7. Equipped with a standard 150L all aluminum hydraulic oil tank, the aluminum oil tank has better heat dissipation, does not absorb heat in summer, does not rust, and maintains the cleanliness of the oil tank; Equipped with a high-pressure filter to enhance the filtration effect of hydraulic oil.

8. Equipped with maintenance valves, telescopic arm oil cylinder balance valves, and multi way valves for crane control;

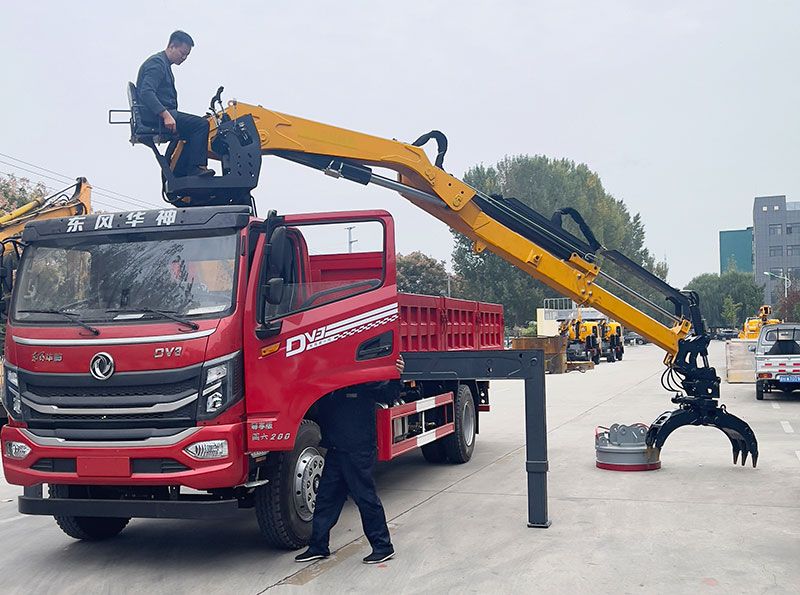

9. Equipped with high-end luxury seats for better visibility and safer operation;

10. The gripper can be optionally installed according to work needs: it can be equipped with self generating suction cups, 3+2 scrap iron grippers, European style grab wooden clips, six or four piece scrap iron waste grippers, and various other grippers. You can also choose between hard or soft connected gripper forms to increase work flexibility.

Product advantages

1. A new generation lightweight platform with a high starting point;

2. High quality hydraulic key components to enhance product competitiveness;

3. Multiple optional configurations to easily meet personalized customization needs;

4. Compact structure, flexible operation, fast speed, high efficiency, application of high-strength steel, lighter weight of the whole machine;

5. The variable amplitude mechanism has a main arm with a negative angle of 35 ° and two arms with a negative angle of 65 °, with a wide range of applications and flexible operation;

6. Advanced hydraulic system to improve the working speed of the entire machine and achieve the functions of anti vibration and multi action linkage of the lifting arm;

7. Optional wireless remote control control system for more convenient operation;

8. The hydraulic valve lock adopts high-quality brands for higher reliability;

9. Due to different operating conditions, installation sites, or vehicles, customization can also be accepted according to user technical requirements.

The above configurations are optional, and prices vary depending on the configuration. Please feel free to contact your sales consultant at any time.
