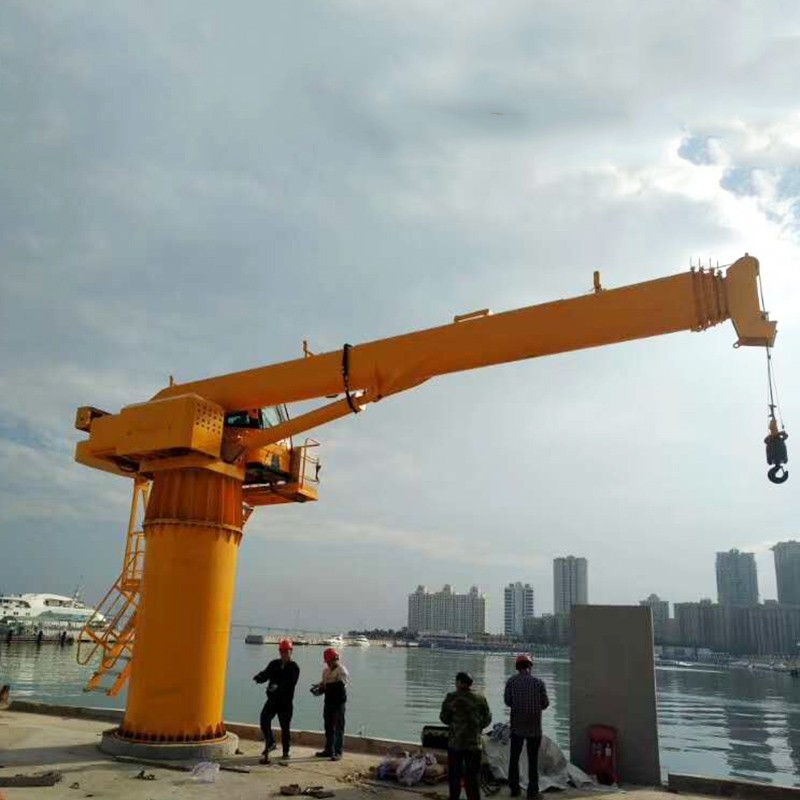

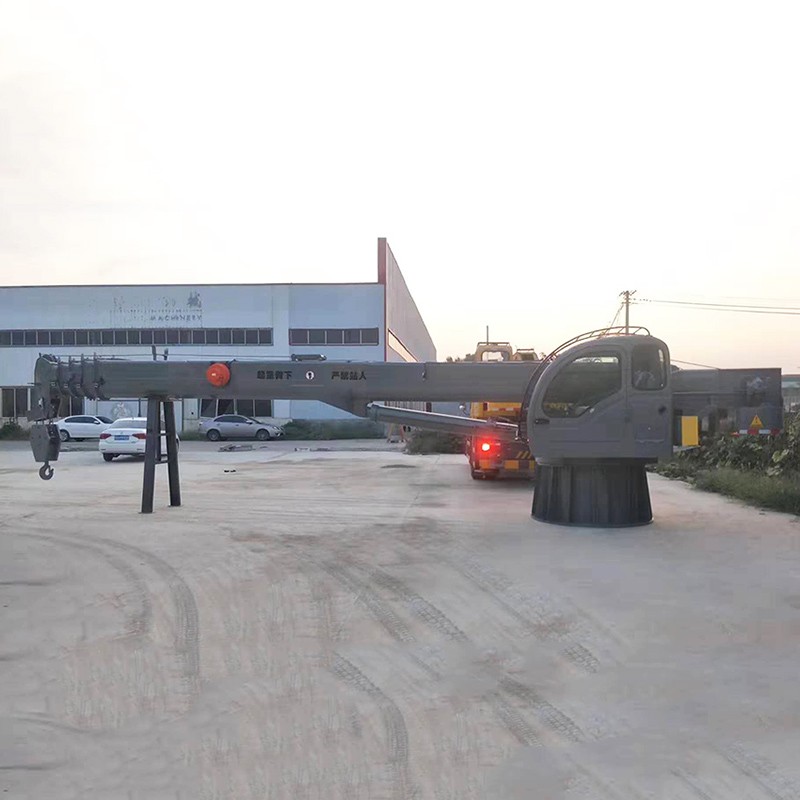

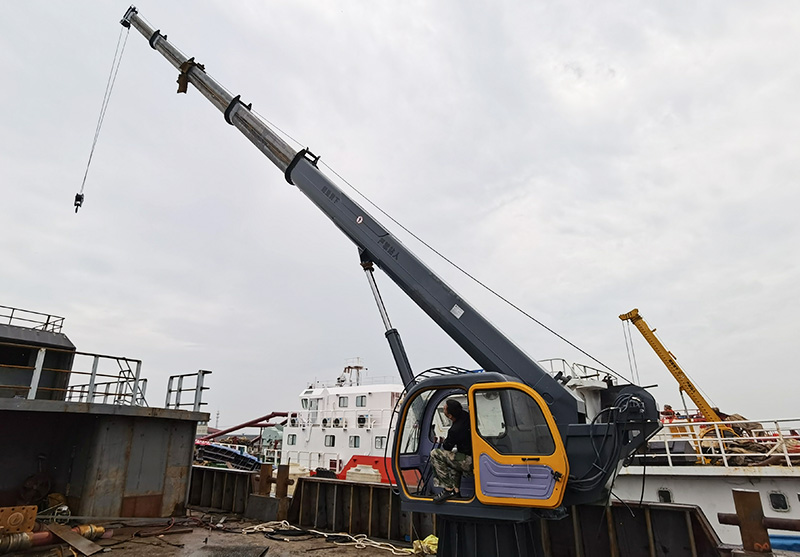

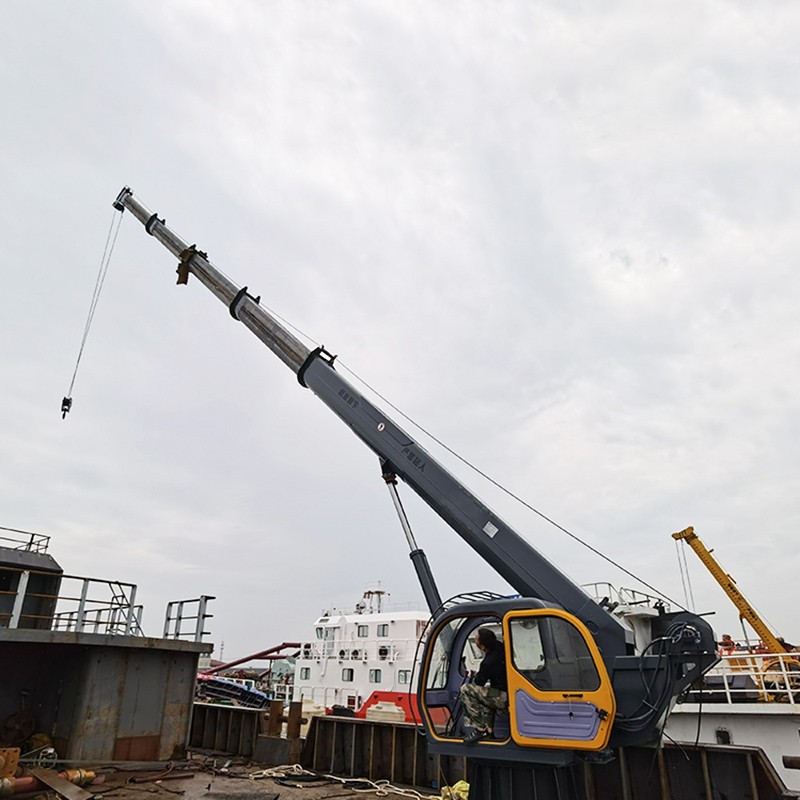

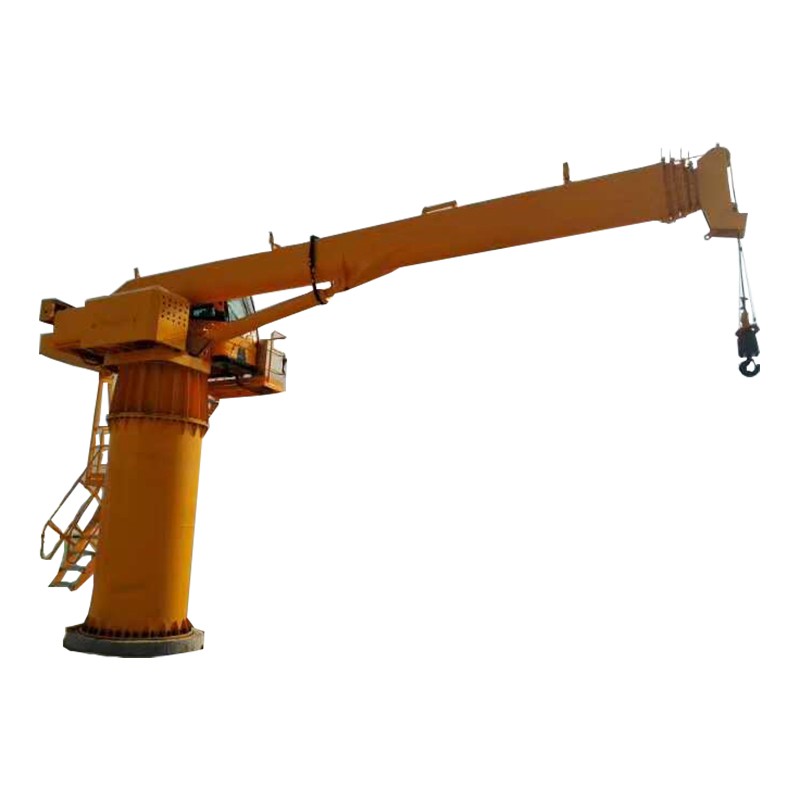

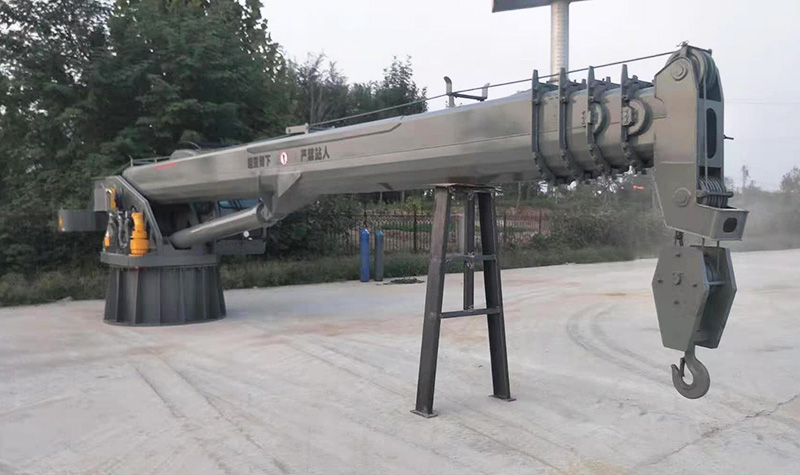

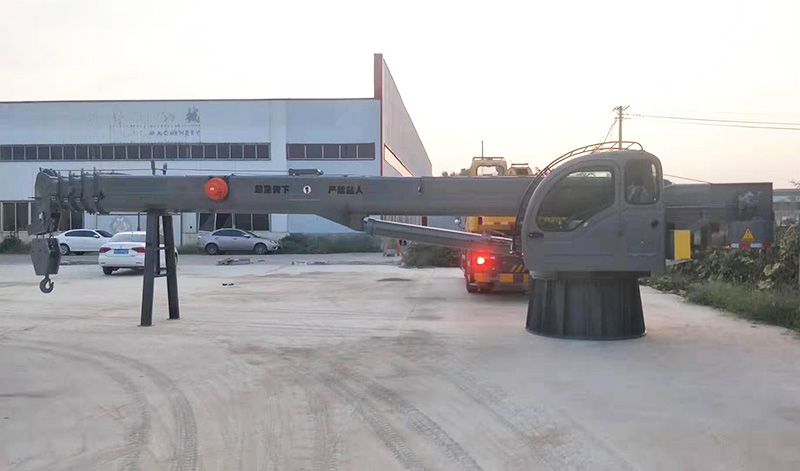

16 Ton Telescopic Boom Marine Crane

Maximum lifting mass：16000kg
Max lifting moment：50Ton.M
Recommended power：40kw
Max oil flow of hydraulic system：80L/min
Ralated pressure of hydraulic system：28Mpa

INQUIRY

Product Details

Product Tags

The following is an introduction to 16 Ton Telescopic Boom Marine Crane, MANNICK hope to help you better understand 16 Ton Telescopic Boom Marine Crane. Welcome new and old customers to continue to cooperate with us to create a better future together!

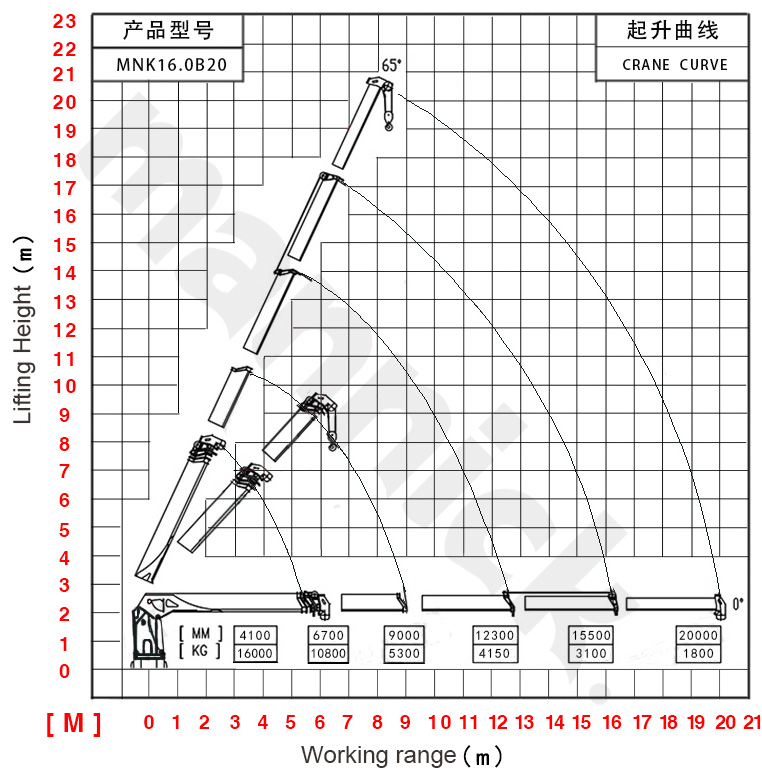

16 Ton Telescopic Boom Marine Crane Specifications

Maximum lifting mass	16000kg
Max lifting moment	50Ton.M
Recommended power	40kw
Max oil flow of hydraulic system	80L/min
Ralated pressure of hydraulic system	28Mpa
Rotation angle	360°
Crane weight	6300kg
Oil tank capacity	260L

16 Ton Telescopic Boom Marine Crane Features And Applications

1.Large slewing moment, able to withstand hull tilt integrated inclination angle up to 5.38°(working condition of standard sea area), wind level 6.

2.Epoxy zinc-rich primer is used for the primer, and polyurethane acrylic top coat is sprayed after the whole machine is commissioned, which is more resistant to the corrosion of seawater.

3.External/internal cylinder telescoping, more reliable performance, and better anti-corrosion performance in line with the plated cylinder.

4.The whole crane is sealed to prevent the influence of humid environment, and the key internal parts are well protected to achieve the purpose of anti-corrosion.

5.Double rack cylinder rotary torque, small rotary resistance, large diameter force, high torque, low failure rate, long life, easy maintenance.
