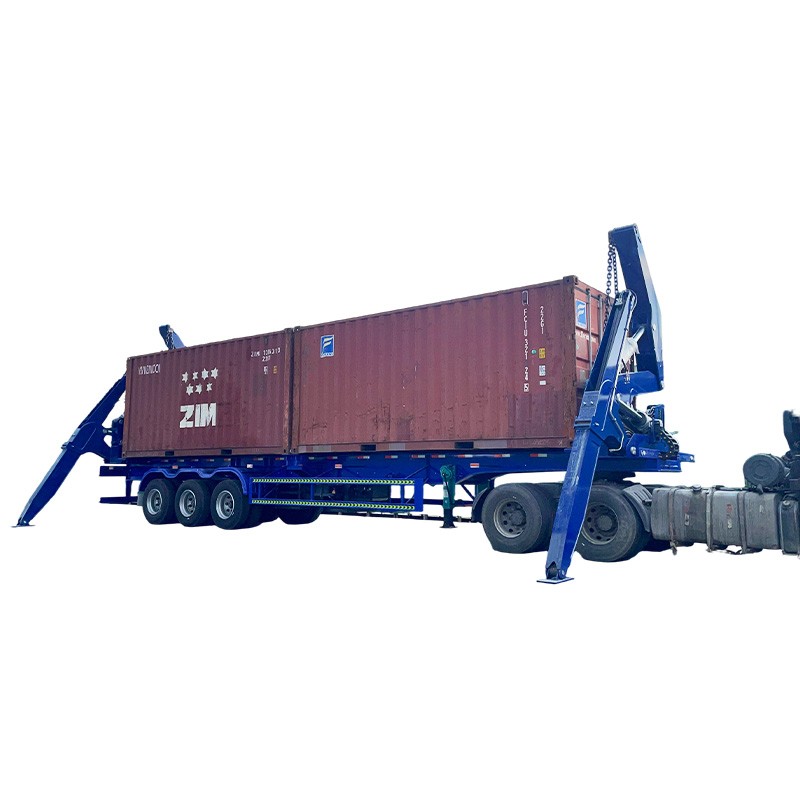

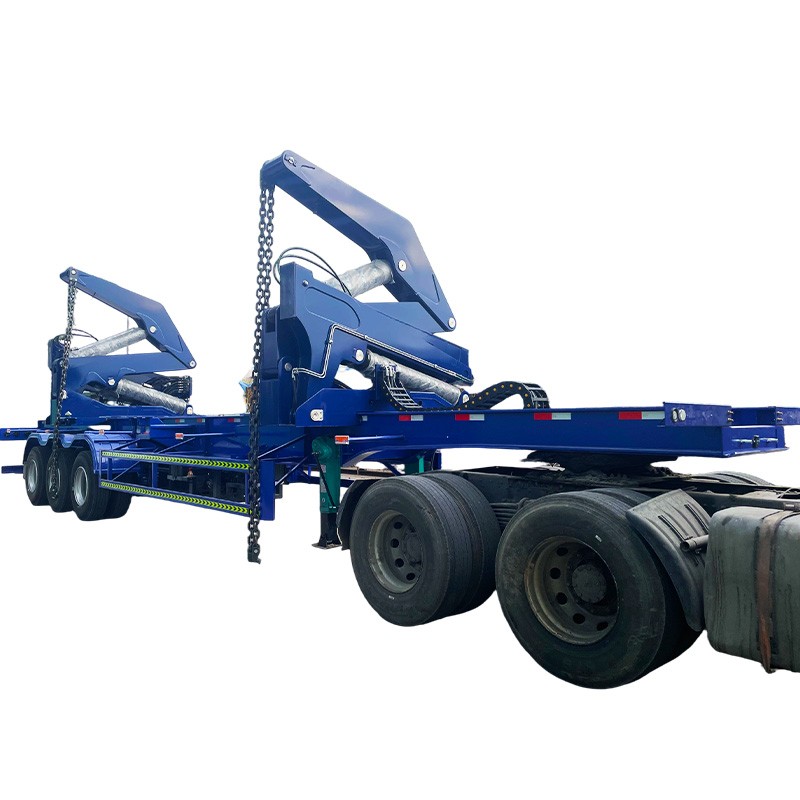

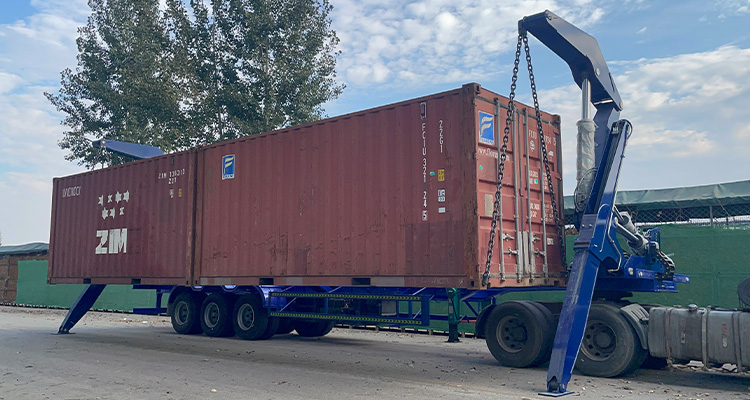

40 Ton Container Side Loader

Loading Capacity: 40 Ton
Tare Weight: 14,000 kgs
Working Radius: 4000 mm
Engine Model & Power: Yunnei 4102 Turbo / 36.5 kW

INQUIRY

Product Details

40 Ton Container Side Loader

Key Features:

Compact and lightweight design reduces overall vehicle load.

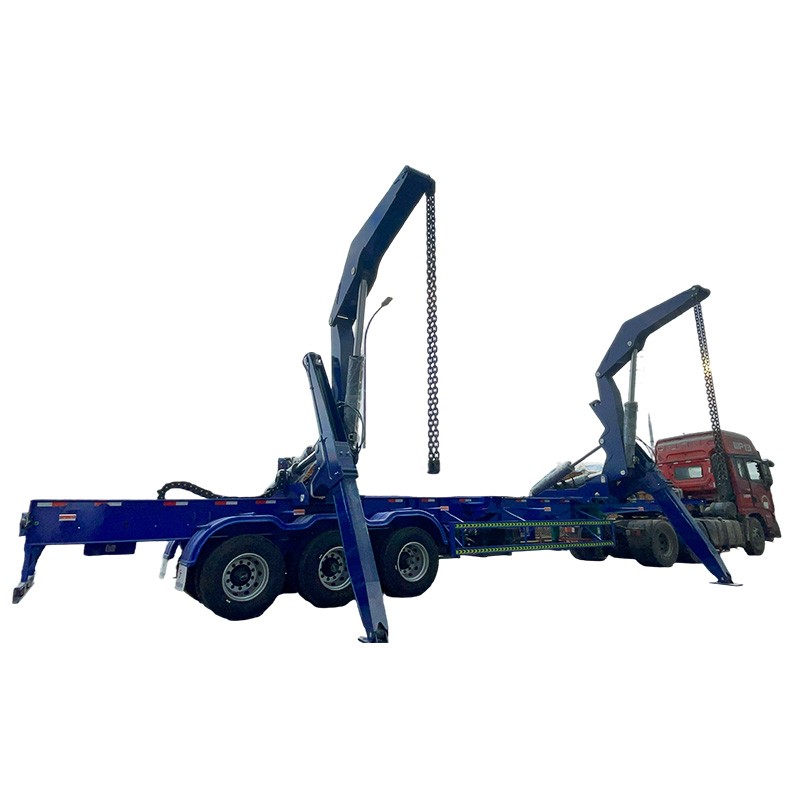

Max. leg span of 3200 mm ensures machine stability under heavy loads.
Max. hydraulic pressure of 25 MPa ensures efficient power transmission and rapid response.
4000 mm working radius covers mainstream loading/unloading scenarios.
Designed for fast container loading/unloading, ideal for small-to-medium logistics operations with easy handling.

Parameter	Specification	Parameter	Specification
Product Name	Container Side Loader	Brake System	Dual line Air braking system
Type	Container Transport Chassis	- Brake chamber	Double Spring brake chamber
Loading Capacity	40 Tons	King Pin	Bolts type 3.5" (90#)
Tare Weight	14,000 kgs	Loading Gear (Legs)	YAHUA brand 28 tons
Outside Dimension	L: 14,100 mm / W: 2,500 mm / H: 4,100 mm	Tyre	12 R22.5 × 12 pcs (Triangle Brand)
Axle	3 axles × 13T	Engine Model	Yunnei 4102 Turbocharged Engine
Suspension	Leaf spring mechanical suspension	Power / Speed	36.5 / 2600
- Leaf width	90 mm	Emission Standard	Off-road, Euro II
- Leaf thickness	16 mm	Main Beam Height	550 mm
- Leaf layer	10 pcs	Main Beam Plates	Top: 20 mm / Middle: 10 mm / Bottom: 20 mm
