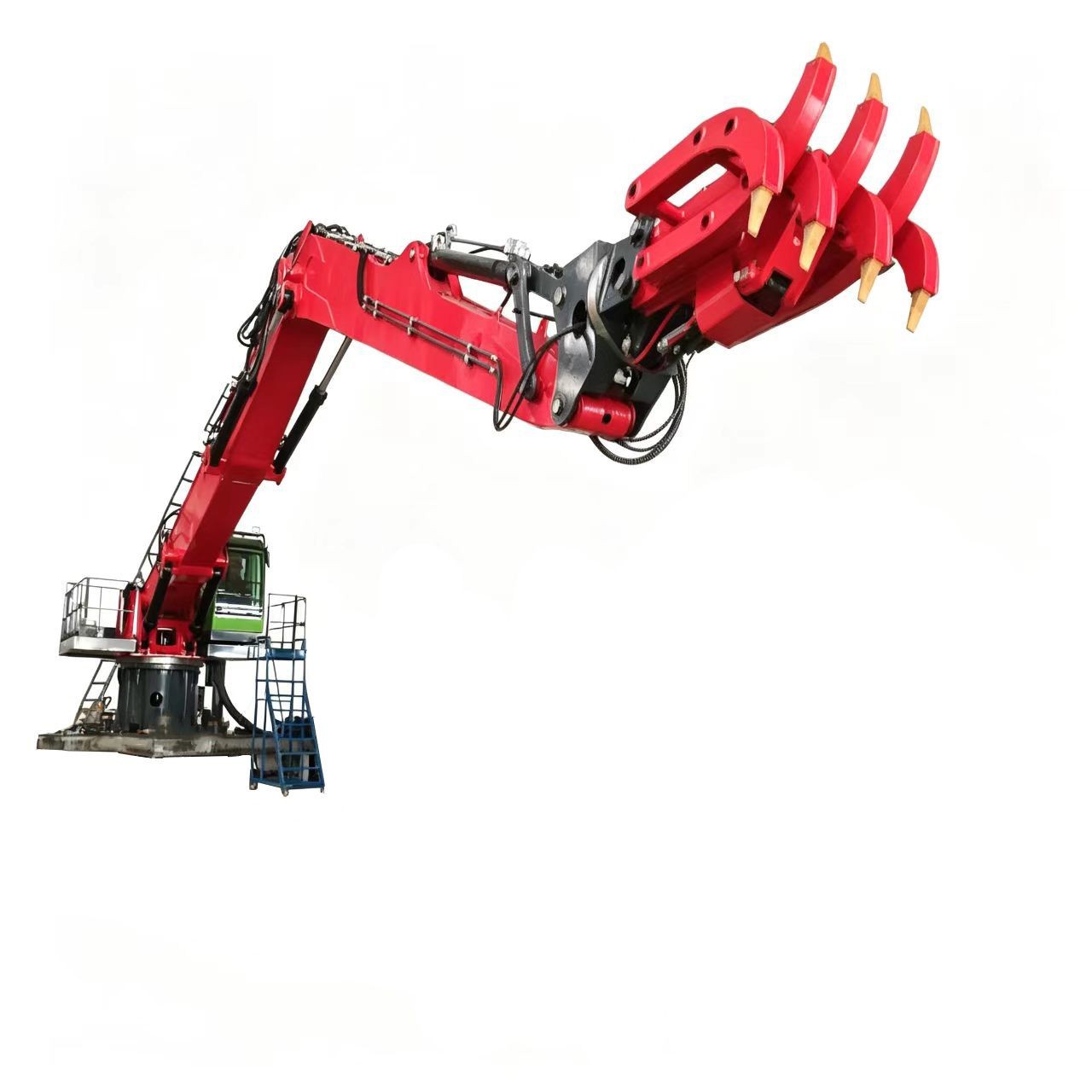

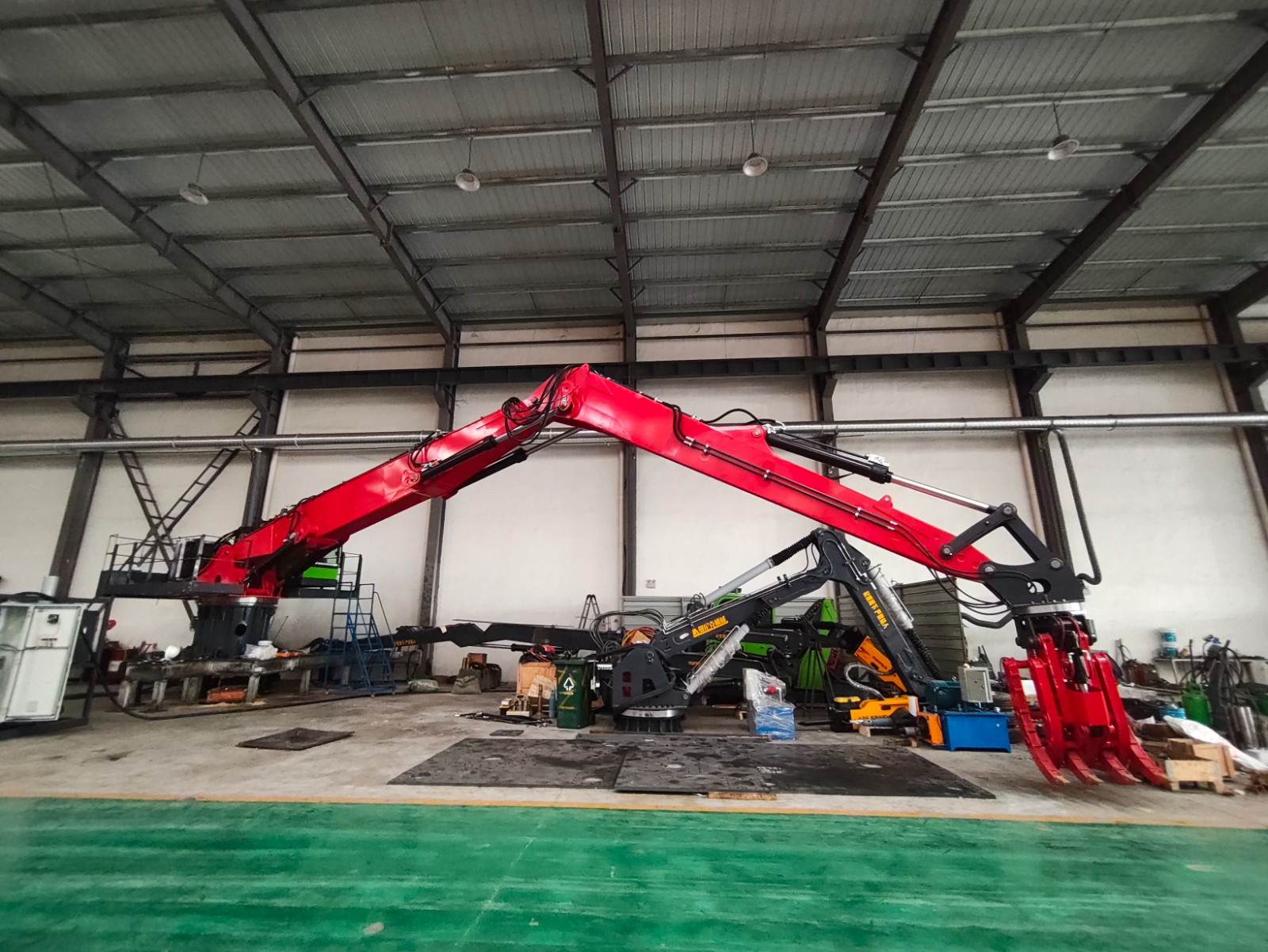

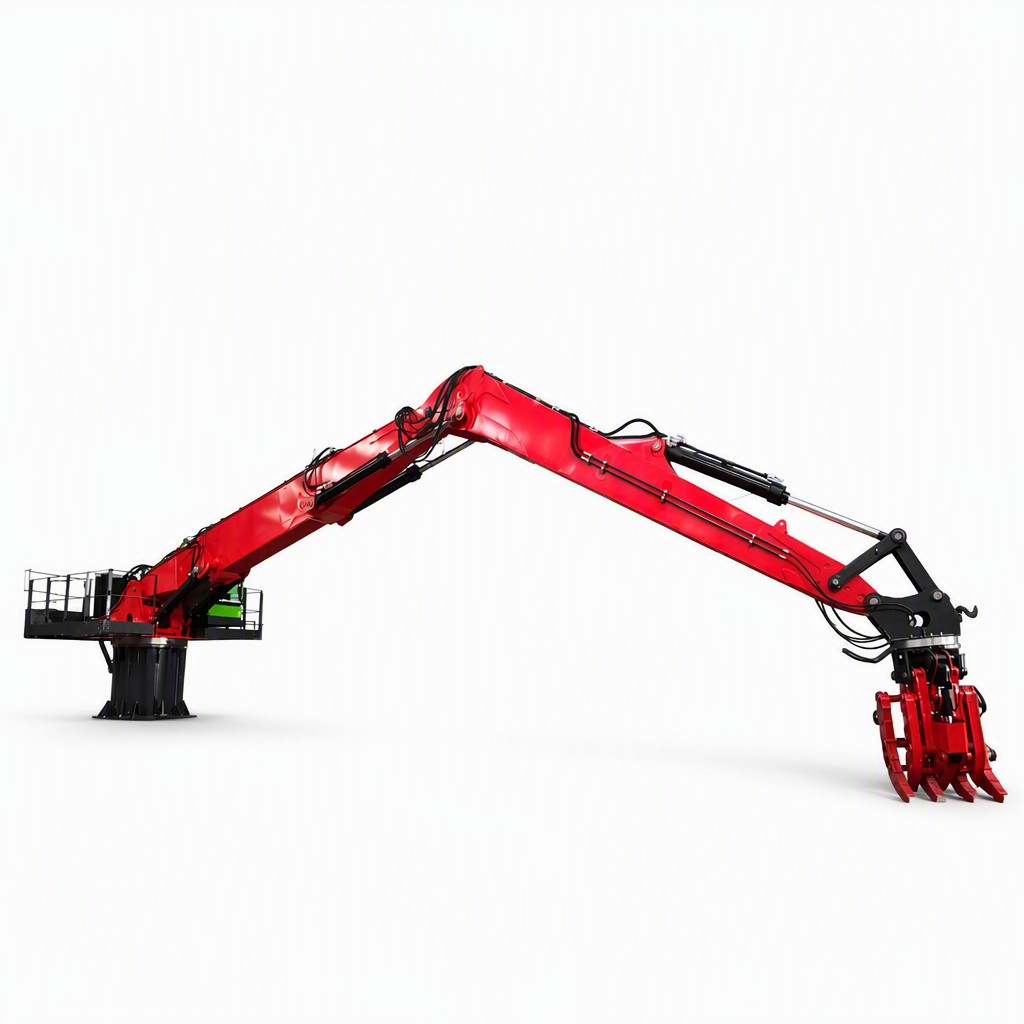

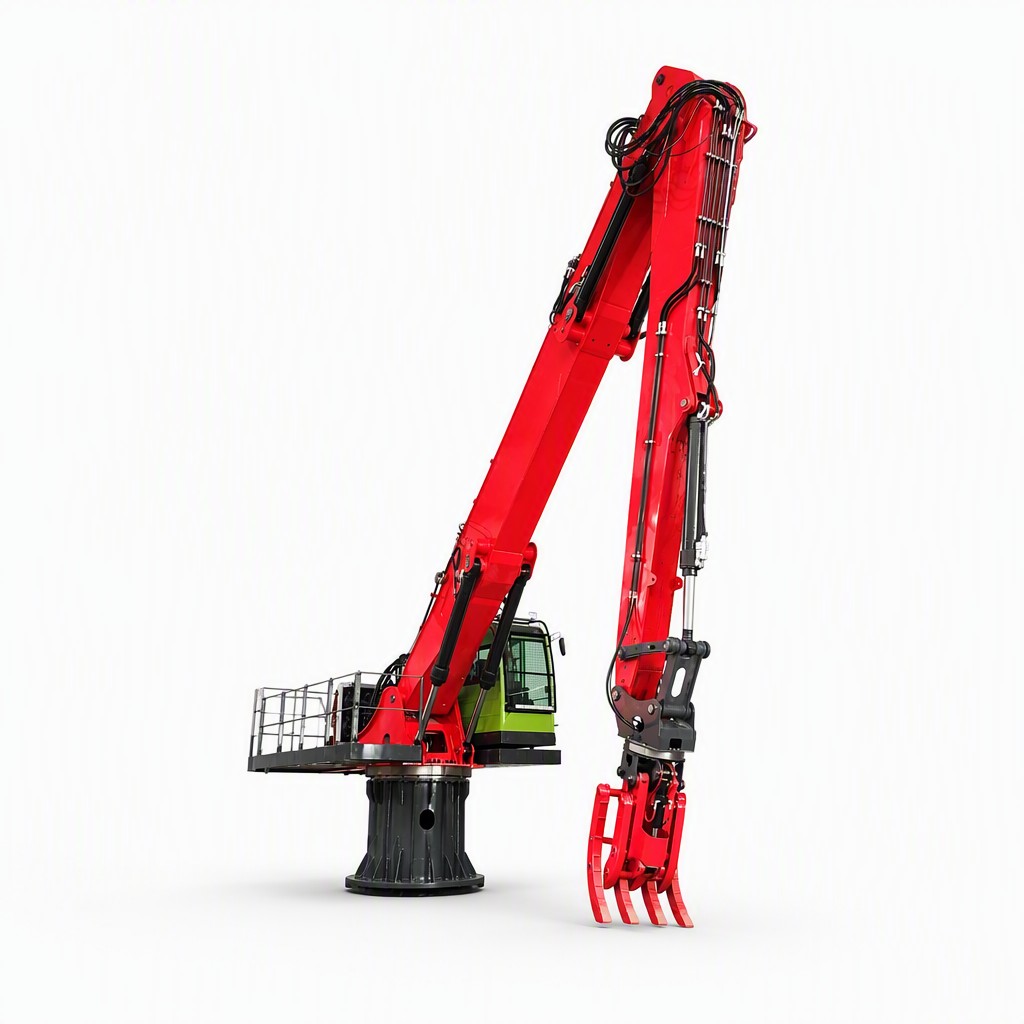

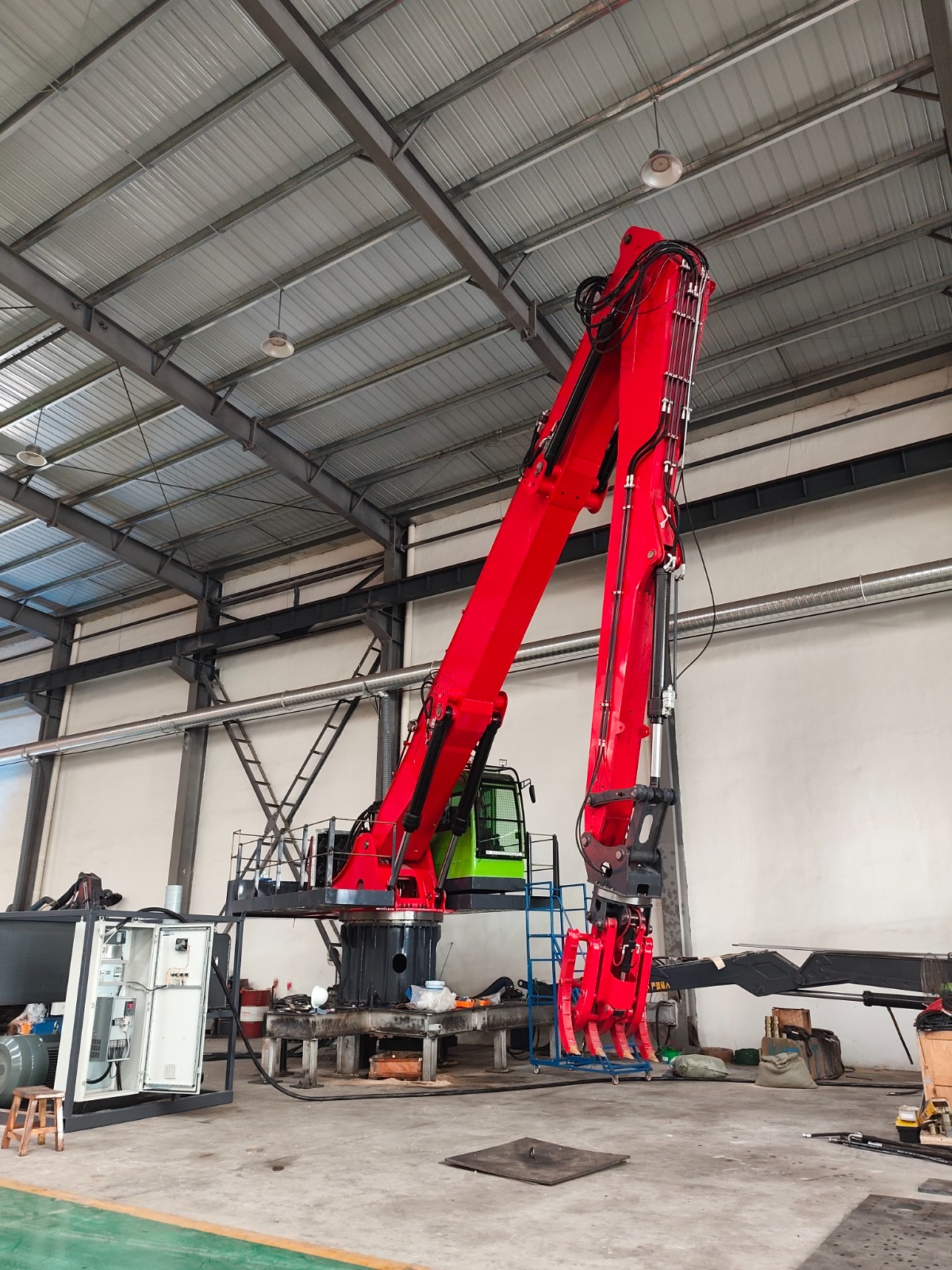

15 Meter 2ton stationery Grab crane

Boom length: 15m
Lifting capacity(boom full extended): 2ton
Base type: Stationary
Boom type: Fixed
Recommend Motor Power: 110kW

INQUIRY

Product Details

Product Tags

15m-2ton Electric Stationary Grab Crane

1. High-pressure, large-flow load-sensing variable displacement piston pump for efficient and stable hydraulic performance
2. Hydraulic pilot control joysticks, providing smooth operation and high sensitivity
3. 360° slewing bearing system for full-range rotation flexibility
4. Double hydraulic cylinders with high-strength reinforced steel structure, ensuring strong gripping force
5. Quadrilateral-section boom design, enhancing anti-bending and structural stability
6. Energy-saving electric motor system, reducing energy consumption and operating cost
7. Luxury lifting cabin (optional) for improved operator comfort and safety
8. Shock-absorbing seat design, reducing vibration and operator fatigue during long working hours

Model	MNK-15M-2.0T
Safe Working Load	15m - 2.0T
Main Boom Length	9m
Full Extended Boom Length	15m
Slewing Angle	360°
Slewing Speed	≈2–4 r/min

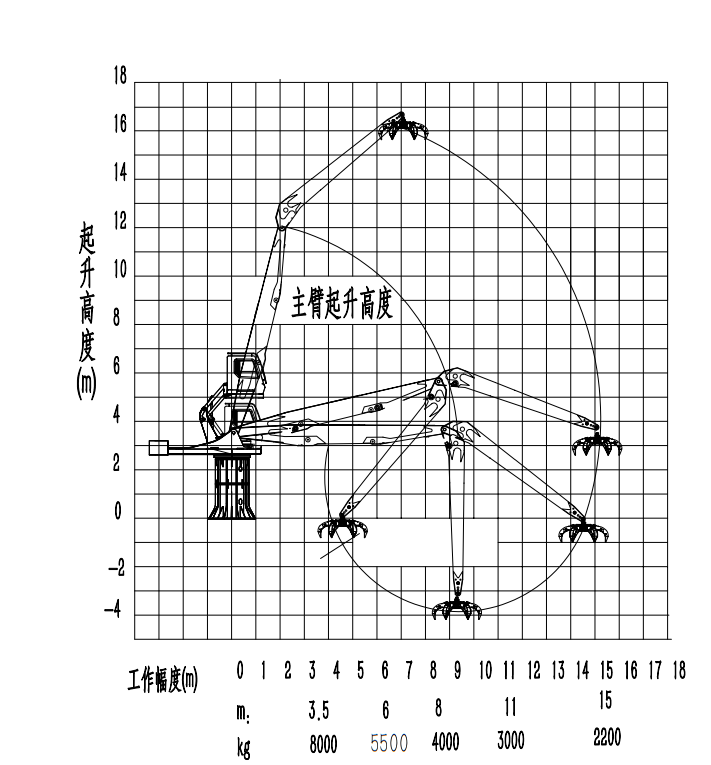

Working Radius	3–15m
Luffing Angle	-10 ~ 75°
System Flow	300 L/min
System Motor	Three-phase asynchronous motor
Motor Power	110 kW
Motor Starter Cabinet	110 kW soft starter cabinet
Working Pressure	32 MPa

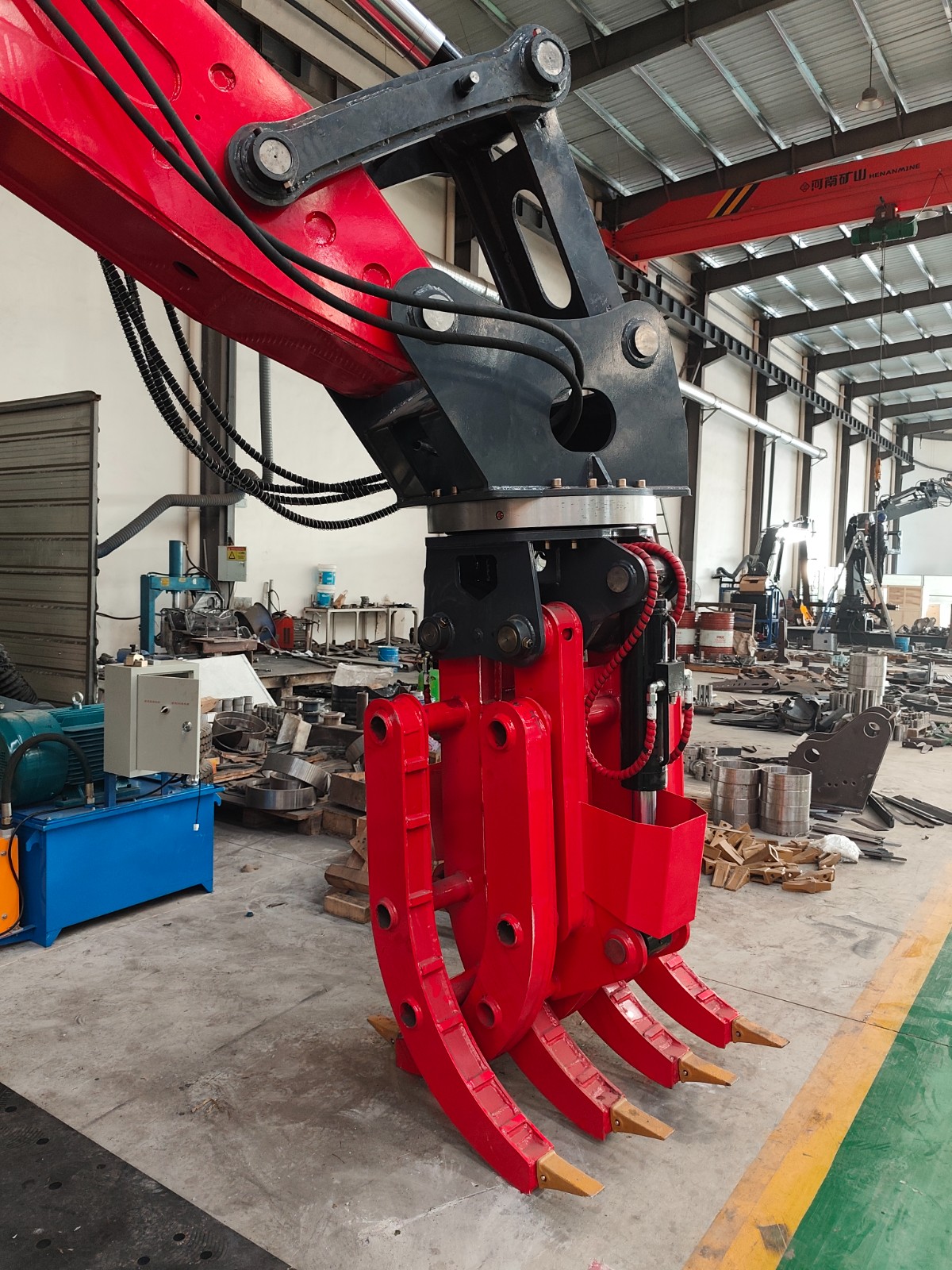

Grab Options	Grab can rotate 360° infinitely
Control	Load-sensing hydraulic pilot handle
Cabin	Four-link hydraulic lifting luxury cabin
Total Weight	17 tons
