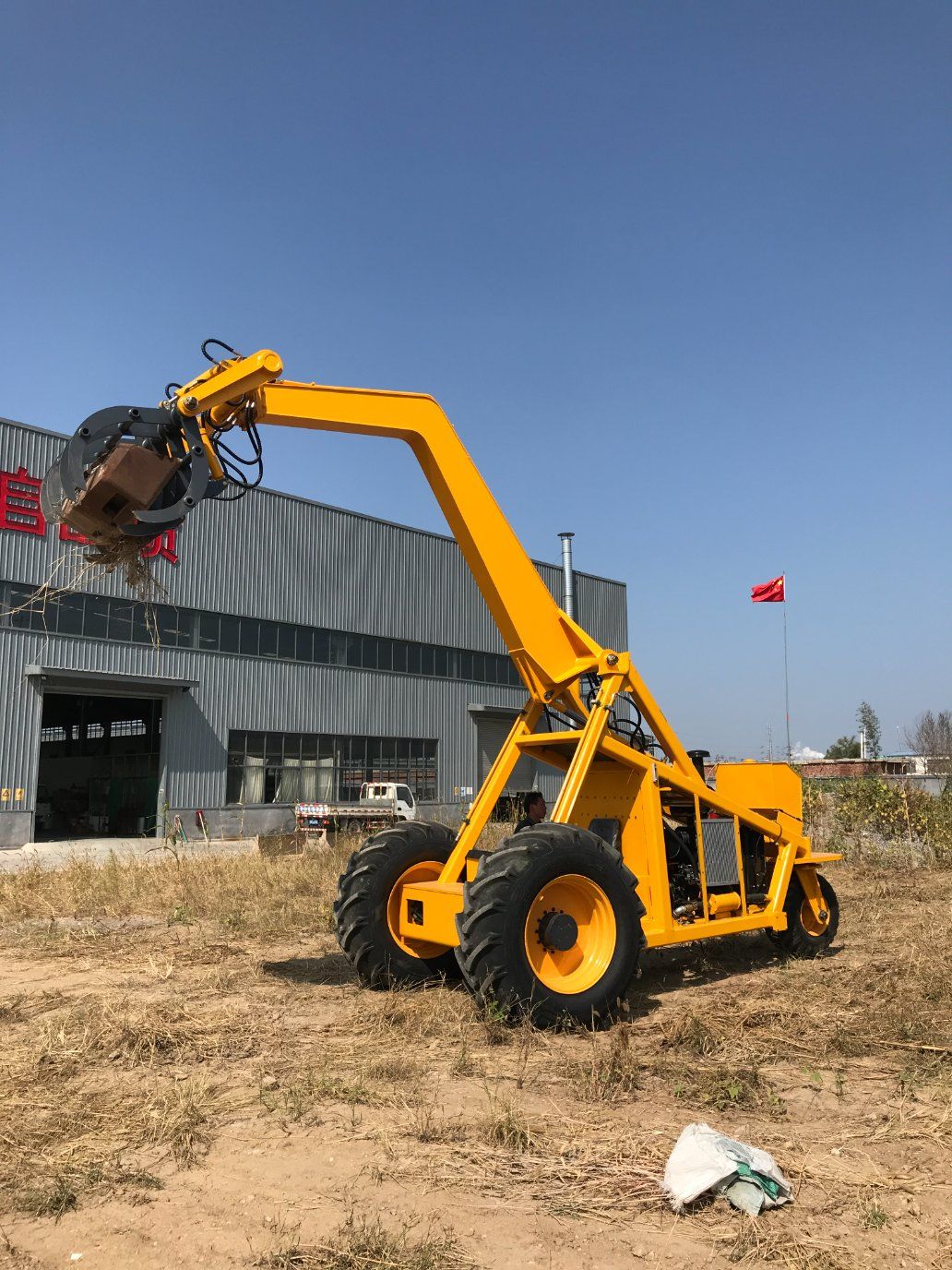

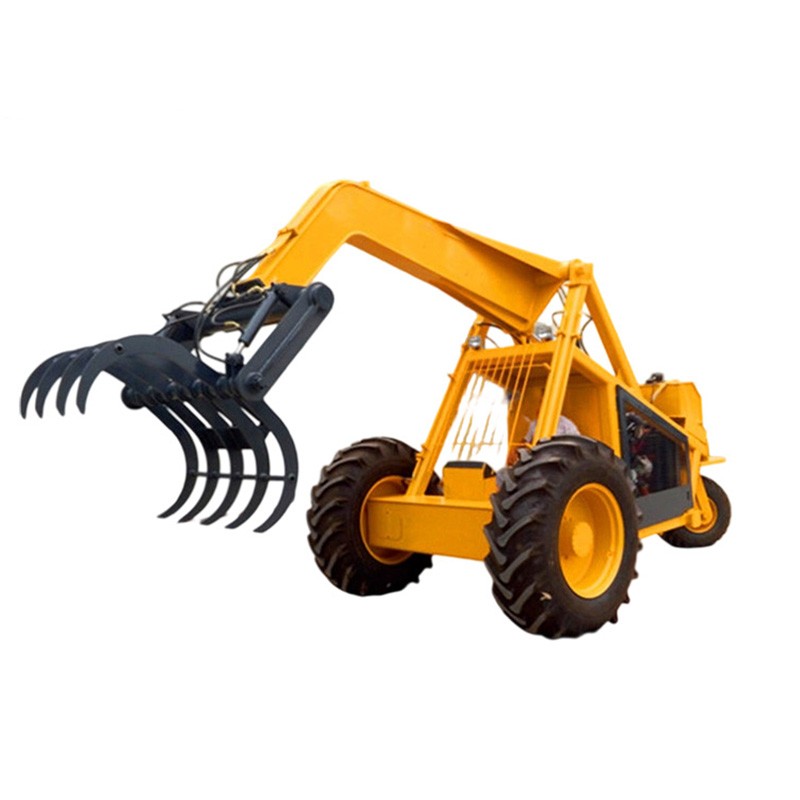

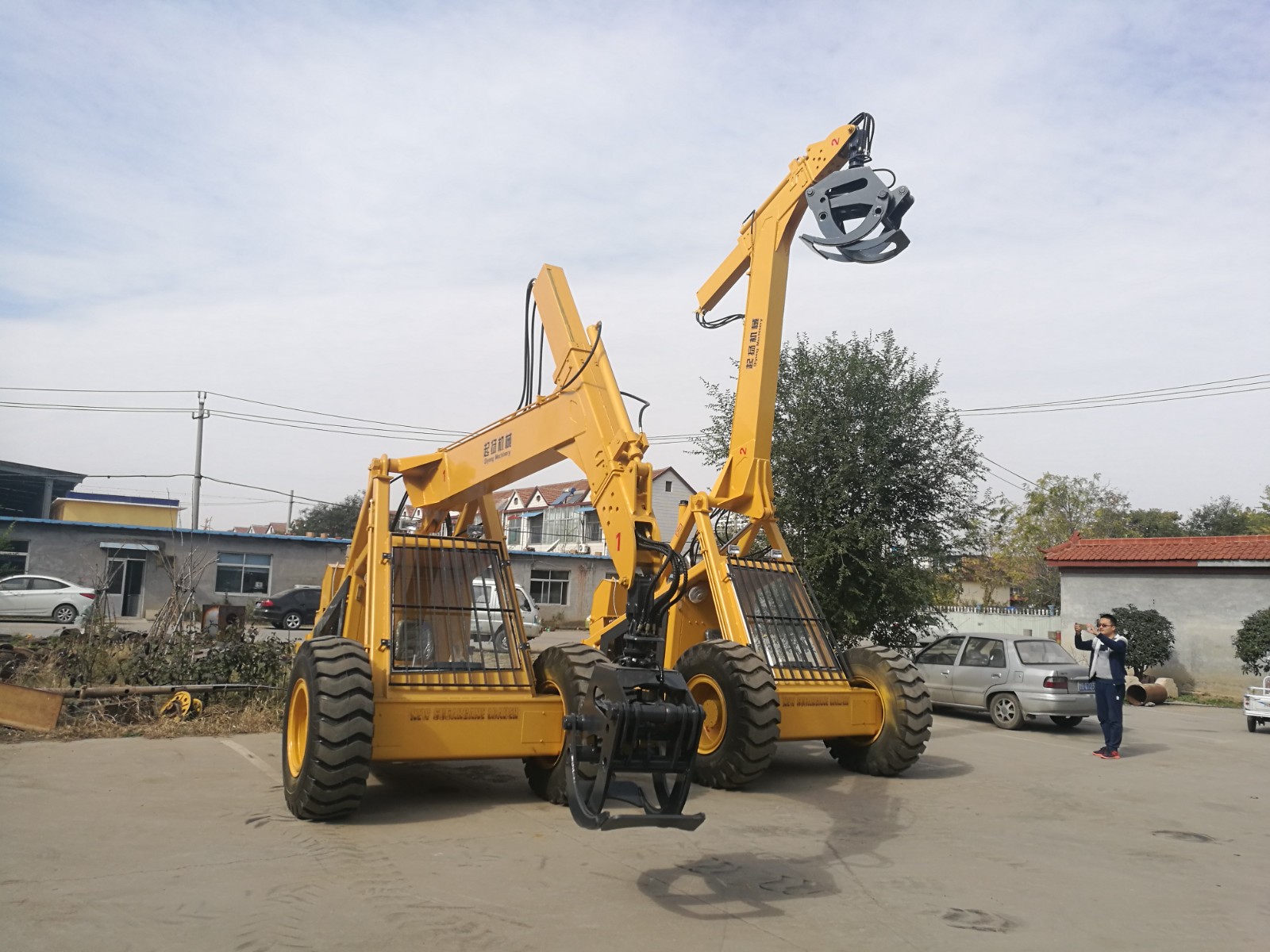

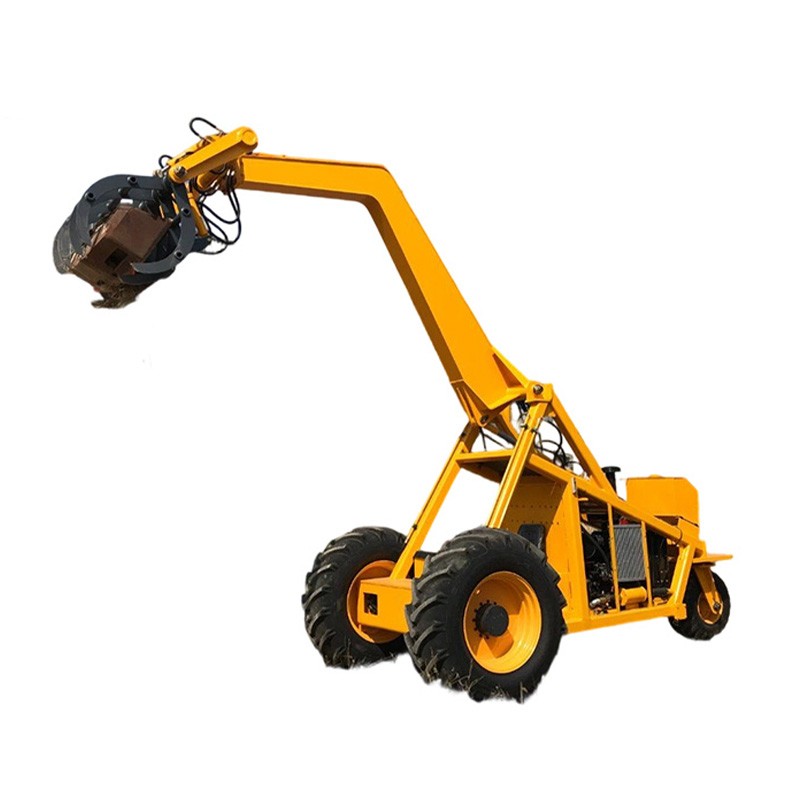

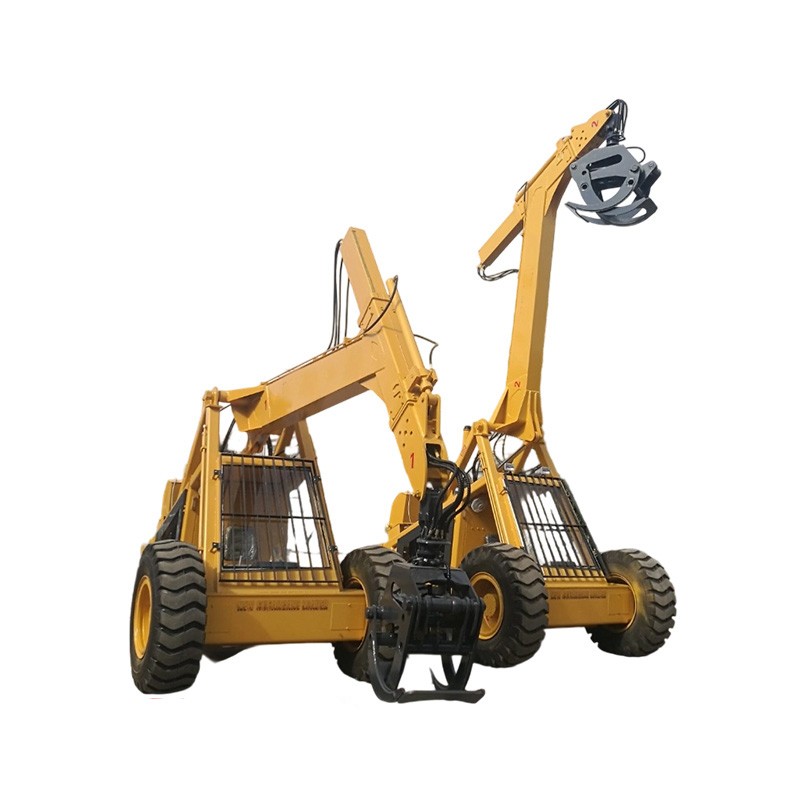

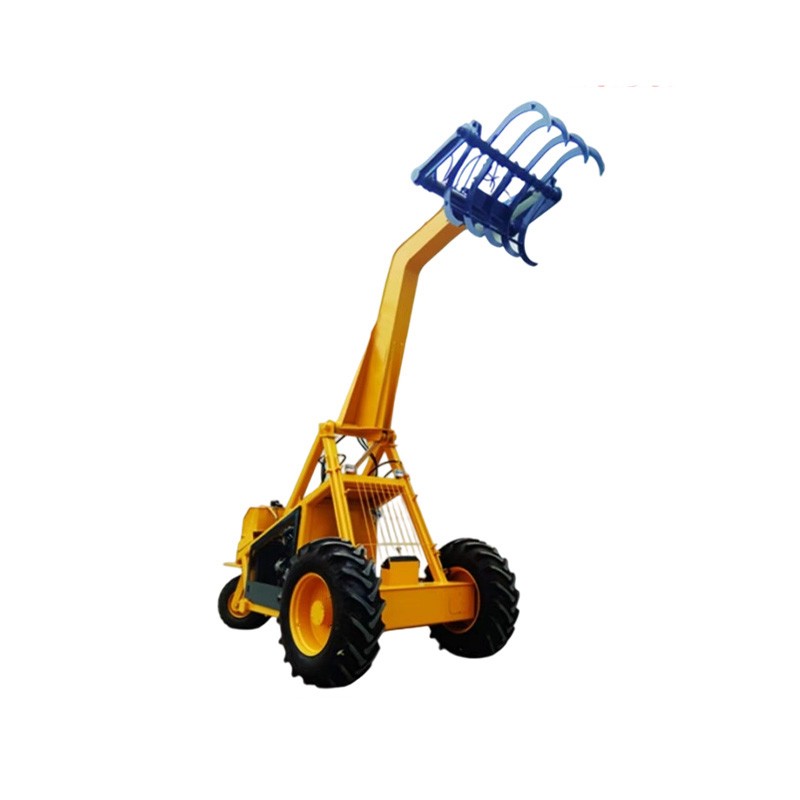

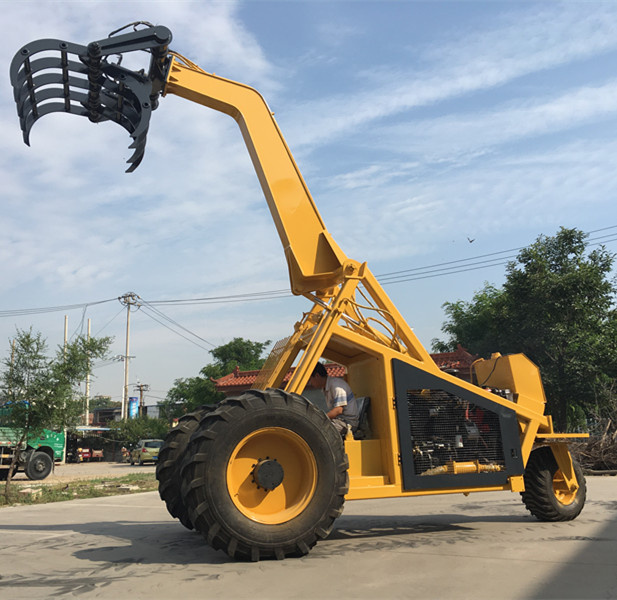

3-Wheel Sugarcane Grab Loader

INQUIRY

Product Details

Product Tags

Wood Sugarcane Grab Loader

1. The machine can rotate 360° on the spot, allowing it to work efficiently in confined spaces.

2. With excellent climbing capability, it is suitable for various working conditions.

3. The operation platform displays water temperature, oil temperature, electric current, and working hours clearly at a glance.

4. It adopts brand-name hydraulic components and a Cummins engine, ensuring long service life, strong power, and fast working speed.

5. The machine is capable of walking and stacking simultaneously.

6. The grab bucket supports both front grabbing and side loading, significantly improving work efficiency.

7. With hydraulic driving and coordinated multi-function operation, one machine can replace a large amount of manual labor and greatly reduce labor intensity.

Total Weight	5200kg
Rate weight	700kg
Engine Model	Cummins4BT3.9-C100
Rated Power	74kw
Rated Revolutior	2000r/min
Max. Dumping Height	5000mm
Max.Walking Speed	25km/h
Min. Rotary Radius	3600mm
Overall Dimension	725021502780
Min. Ground ciearance	400mm
Distance Between Tire	1790mm
Distance Between Axles	3062mm
Max.Grab Size	1200mm
Min Hold Circle Size	530mm
