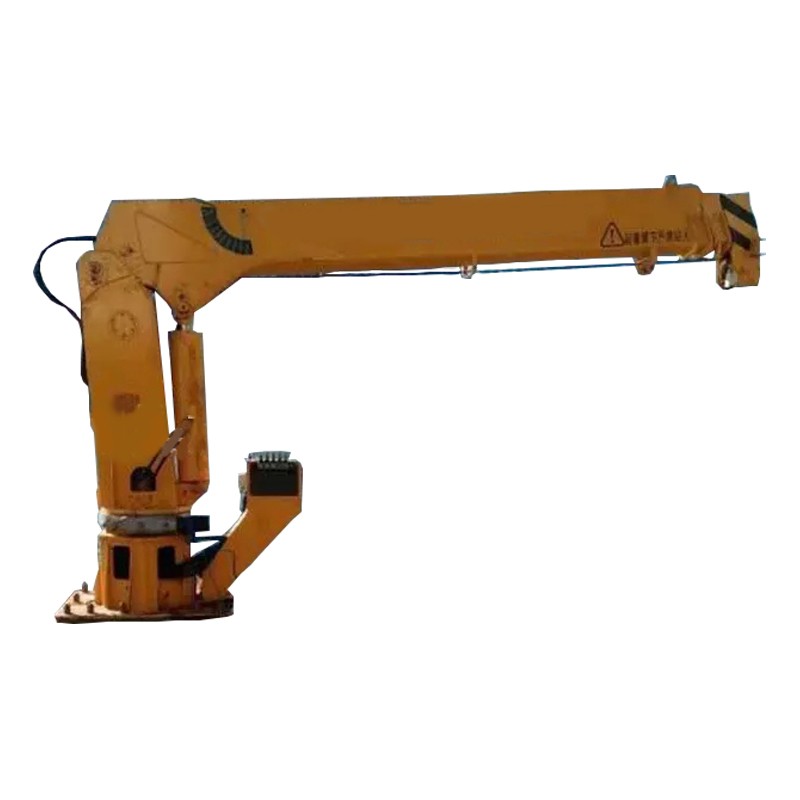

MNK-CY600 Telescopic Boom Marine Crane

Maximum lifting mass：6300kg
Max lifting moment：20Ton.M
Max working raduis：15m
Recommended power：11kw
Max oil flow of hydraulic system：40L/min

INQUIRY

Product Details

Product Tags

MNK-CY600 Telescopic Boom Marine Crane is very reliable and advanced. It is designed with the latest technology and analysis to ensure efficient and reliable work. The crane has a compact structure and design, is light in weight, and has a high weight-load ratio.

MNK-CY600 Telescopic Boom Marine Crane Parameters

Maximum lifting mass	6300kg
Max lifting moment	20Ton.M
Max working raduis	15m
Recommended power	11kw
Max oil flow of hydraulic system	40L/min
Ralated pressure of hydraulic system	23Mpa
Fuel tank capacity	150L
Rotation angle	360°
Crane weight	1500kg
Installation space	850mm

MNK-CY600 Telescopic Boom Marine Crane Advantage

1. The key structural parts are welded with Q690 high-strength steel plate, which has high strength and light weight.

2. The slewing mechanism adopts an external meshing planetary reducer, which has stable driving and reliable braking.

3. XCMG's large U-shaped anti-folding boom is light in weight and has a load-bearing capacity that is 25% higher than that of a hexagonal boom of the same tonnage.

4. The telescopic boom adopts a single-cylinder synchronous telescopic boom with unique patented technology, the telescopic speed is less than 15 seconds, and the comprehensive operation efficiency is the highest in the industry.

5. The maximum operating range is 16 meters, which is about 2 meters longer than the mainstream four-section arm model in the market, and can meet more working conditions.

6. The hydraulic control valve adopts a proportional valve from a well-known domestic manufacturer, which can perform compound actions and has good micro-movement and higher efficiency.

7. Balance valves, hydraulic pumps, etc. are imported, with stable performance, more than 3 times the life of domestic parts.

8. The optional radiator reduces the temperature of the hydraulic oil in the oil return tank, and the continuous working time is longer.

9. Standard equipped with high pressure filter to improve the cleanliness of hydraulic oil and prolong its service life.

MNK-CY600 Telescopic Boom Marine Crane Description

1) The slewing force is large, and it can withstand the overall inclination of the hull up to 5.38°; (the working condition in standard sea area), it will also reach 8.96°; and the Pu's wind class is 6.

2) The built-in oil cylinder is telescopic, with stable performance and good performance.

3) The whole crane is sealed, and the key parts are well protected to achieve the purpose of anti-corrosion.

MNK-CY600 Telescopic Boom Marine Crane Process treatment

1. External surface treatment of marine crane

Due to the long-term use of marine cranes in humid salt spray environments, the requirements for surface anti-corrosion treatment are stricter than other types of cranes.

2. Shafts are chrome plated

Three layers of paint are sprayed on the outer surface of the structural parts: epoxy zinc-rich primer, cloud iron middle paint, and polyurethane acrylic topcoat. After the entire machine is debugged, the polyurethane acrylic topcoat is sprayed, and the factory film thickness reaches 210-280um.

Due to the limitation of production and processing conditions, the galvanizing of structural parts can not reach the expected goal, so instead of anti-corrosion treatment by galvanizing method, spraying process is used.
