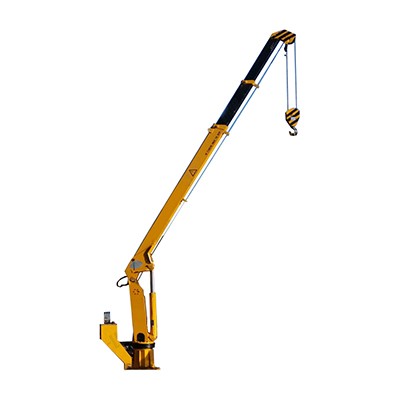

MNK-CY500 Telescopic Boom Marine Crane

Maximum lifting mass：5000kg
Maximum lifting moment：17Ton.M
Maximum working raduis：10200mm
Recommended power：11kw
Max oil flow of hydraulic system：40L/min

INQUIRY

Product Details

Product Tags

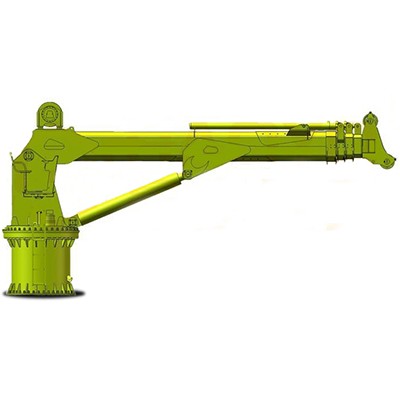

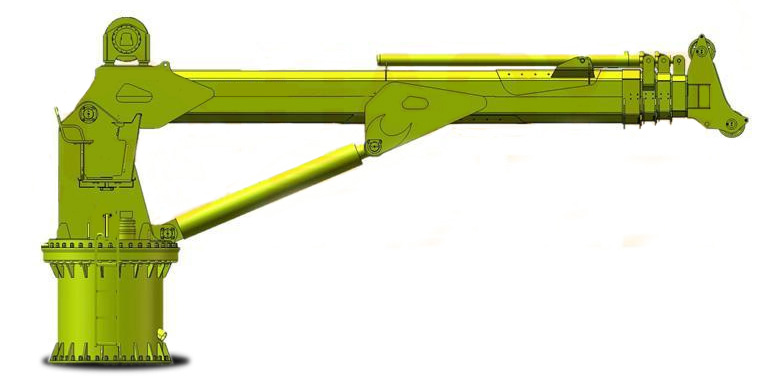

This product is a special fully hydraulic lifting equipment designed and manufactured for port ships. The arm section of this product adopts a hexagonal structure and is made of special high-strength plates for cranes. It has two retractable arms and is lifted by a hydraulic cylinder. It has the characteristics of stable performance, beautiful appearance and corrosion resistance.

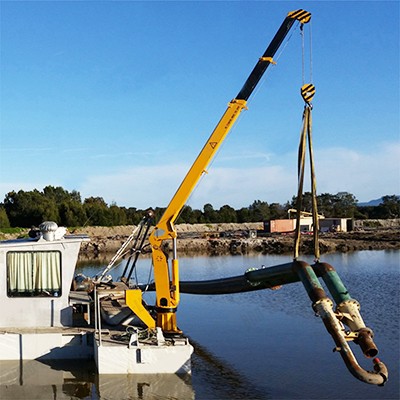

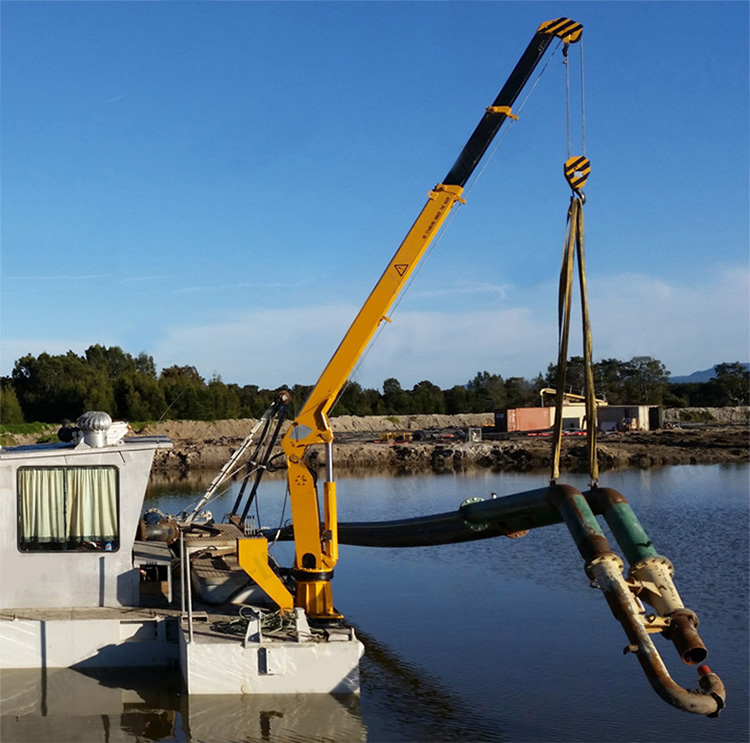

This product can be installed on the deck, cargo hold, stern of the ship, and on the shore dock. Therefore, in view of the characteristics of offshore operations of marine cranes, all the surfaces of our company's cranes are sprayed with epoxy zinc-rich primer; and a closed mechanism design is used to prevent seawater from entering the crane. Internal corrosion, thereby greatly increasing the service life of the crane.

MNK-CY500 Telescopic Boom Marine Crane Parameter

Maximum lifting mass	5000kg
Maximum lifting moment	17Ton.M
Maximum working raduis	10200mm
Recommended power	11kw
Max oil flow of hydraulic system	40L/min
Ralated pressure of hydraulic system	23Mpa
Fuel tank capacity	150L
Rotation angle	360°
Crane weight	1300kg
Installation space	800mm
Maximum working radius	12.5mm
