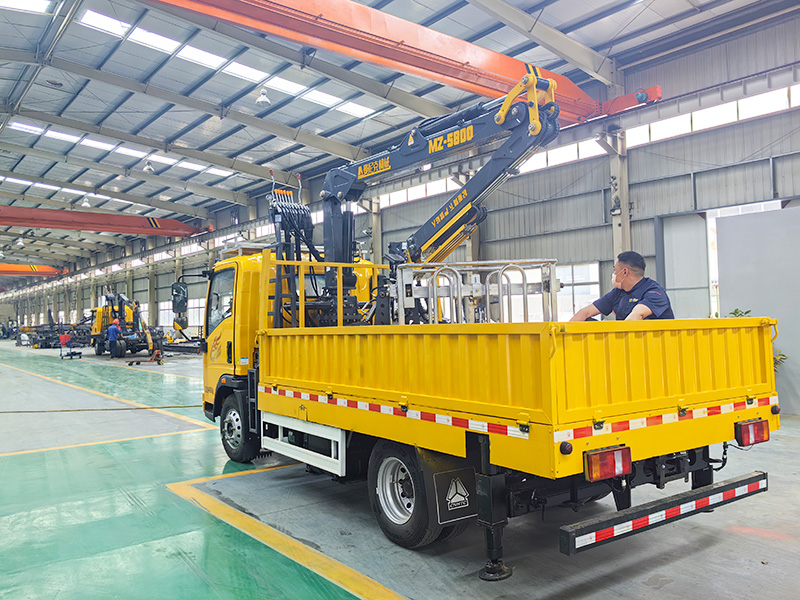

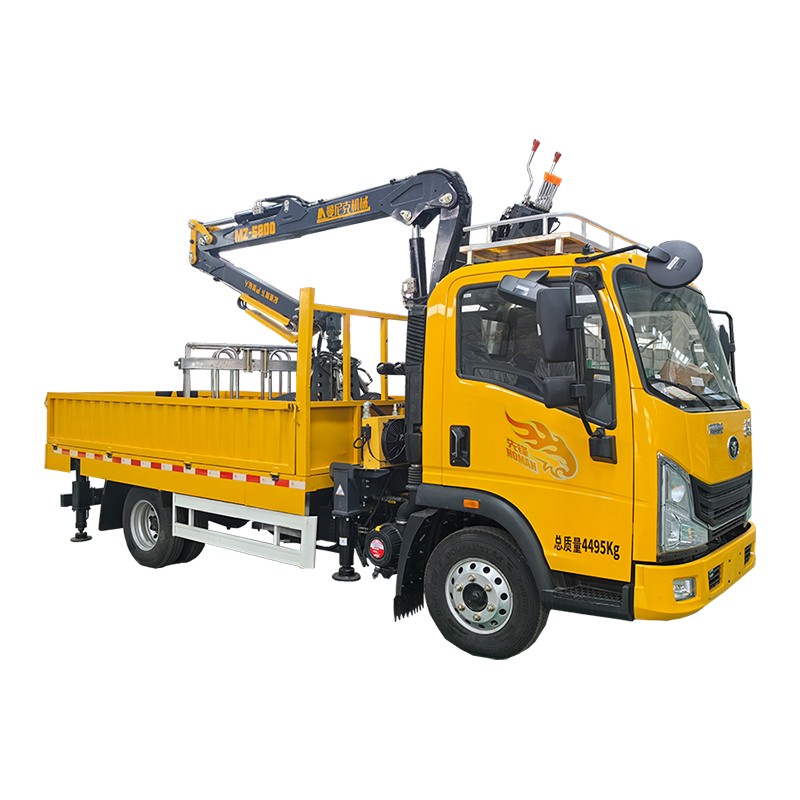

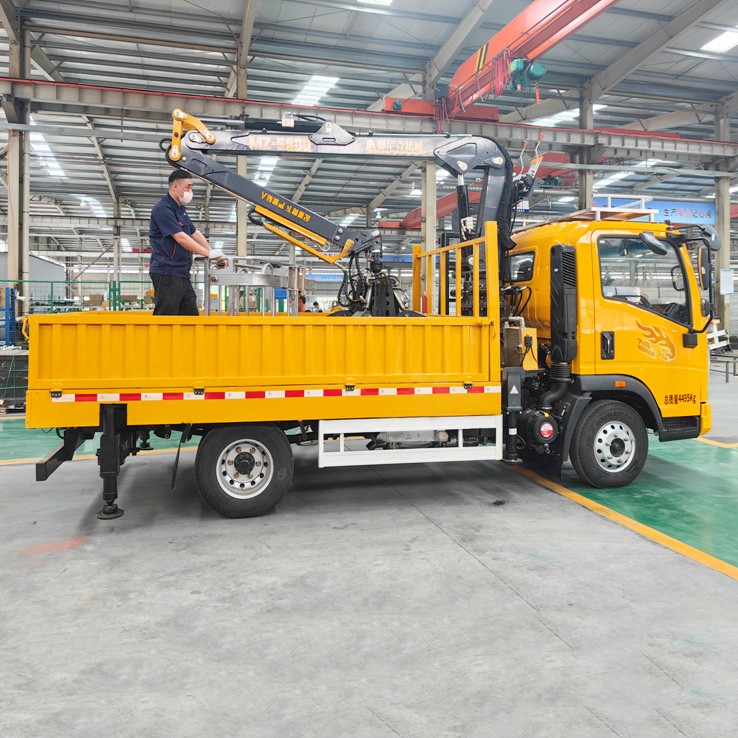

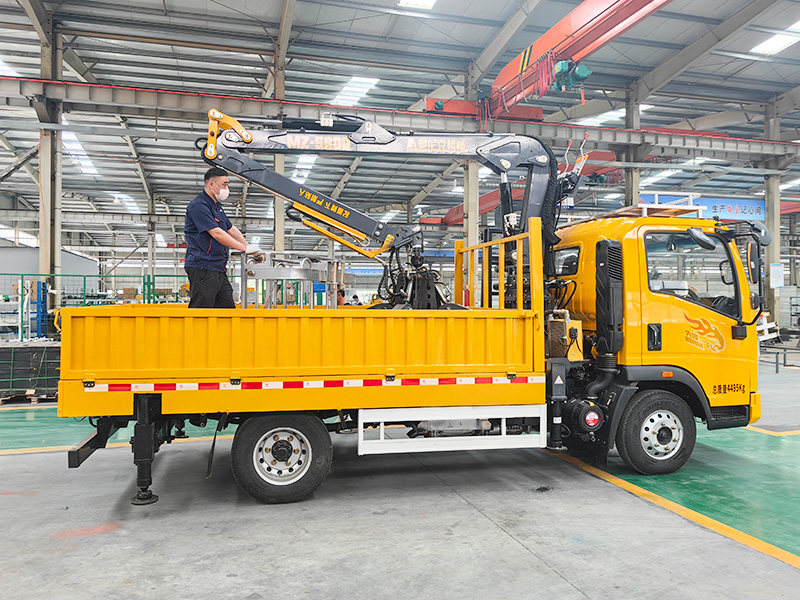

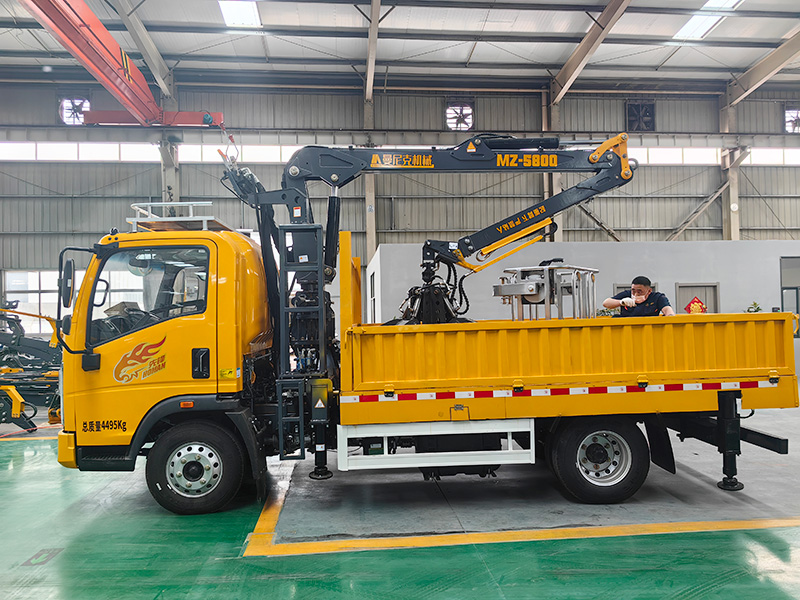

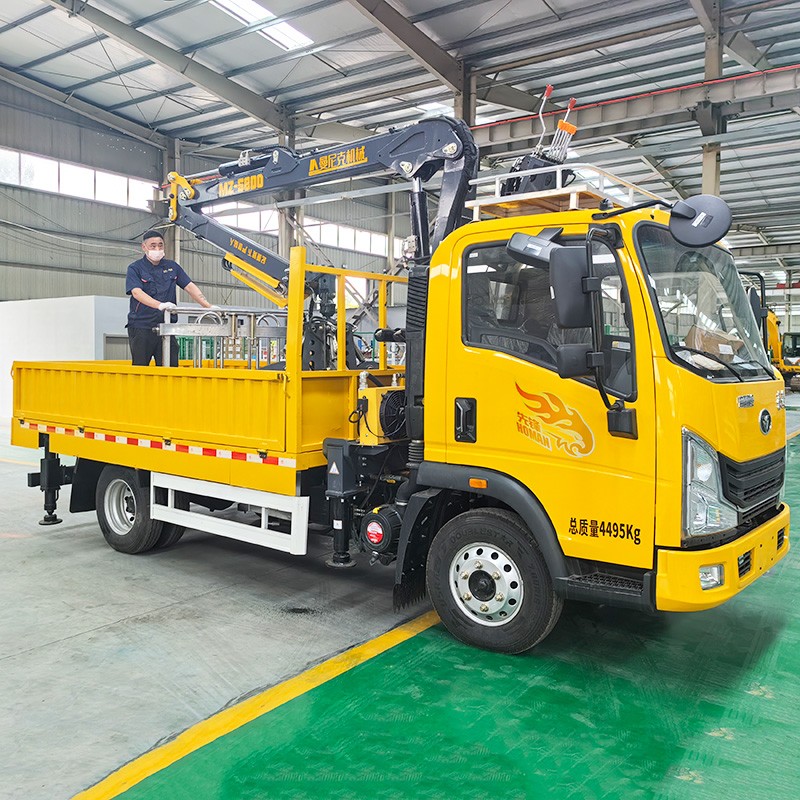

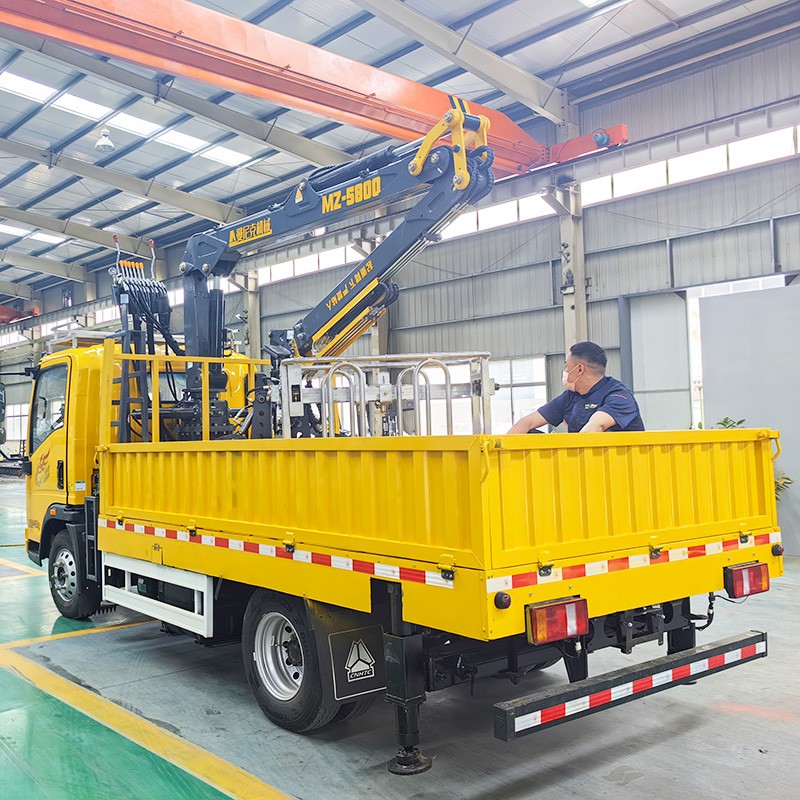

ZM-5800A Truck Mounted Timber Grab

Original vehicle: Install a 5.8-meter telescopic arm (optional 6.5-meter or 7.8-meter).

Original truck: Yunnei 137 horsepower (optional Weichai 143 horsepower or 160 horsepower, 8-speed gearbox).

Standard configuration: steering assist, air brake, original air conditioning, original power take-off, high and low speed pneumatic, electric doors and windows, remote control car key, multifunctional steering wheel, work basket, and four toolboxes.

External dimensions (length, width, height, mm): 5990 * 2250 * 3250.3550.3650

Optional: Container size (length, width, height mm):3600 × two thousand and two hundred × Optional fence height 600/800

Other additional configurations: double top self unloading box, fence, 360 ° rotating motor, gripper (optional one: grab, 3+2 grab, 4+3 grab, multi toothed fence grab).

ZM-5800A Truck Mounted Timber Grab Introduction

Multi functional integrated work vehicle, capable of working at heights, transportation, grabbing, lifting, self unloading, and electric suction cups.

It can transport and grab wood, bamboo, sugarcane, scrap iron, waste, garbage, drip irrigation belts, sand and gravel materials, etc.

Optional: Hydraulic winch can be used as a truck mounted crane for lifting, transporting, and self unloading.

Optional: The self generating suction cup can absorb a weight of 400 kilograms, making it more convenient for collecting scrap iron, loading waste onto vehicles, and transportation.

Equipped with a folding arm frame and a hydraulic telescopic arm that can be extended and retracted by one section, the hydraulic telescopic arm can freely extend and retract under load.

1. Equipped with a gear rack and oil cylinder rotation mechanism, the rotation torque is greater, the speed is smoother and faster than traditional planetary rotation reducers, the impact resistance is durable, and there is no shaking;

2. Four hydraulic large-span support legs, box structure+vertical hydraulic support legs.

3. All actions of variable amplitude lifting arm, boom extension and retraction, boom rotation, lifting winch, and gripper opening and closing are equipped with locking valves to increase safety protection;

4. Equipped with a 40L/min displacement pump system as standard, it improves work efficiency and can achieve synchronous operation.

5. Equipped with an electronic control one control three operation system, it can control three actions with one operating rod and operate synchronously, with higher sensitivity and improved work efficiency.

6. High power fully automatic start stop intelligent temperature controlled hydraulic radiator, automatically opens the heat dissipation function when the hydraulic oil temperature is too high, effectively controlling the hydraulic oil temperature and increasing continuous operation capability.

7. Equipped with a standard 150L all aluminum hydraulic oil tank, the aluminum oil tank has better heat dissipation, does not absorb heat in summer, does not rust, and maintains the cleanliness of the oil tank; Equipped with a high-pressure filter to enhance the filtration effect of hydraulic oil.

8. Equipped with maintenance valves, telescopic arm oil cylinder balance valves, and multi way valves for equipment control;

9. The gripper can be optionally installed according to work needs: it can be equipped with self generating suction cups, 3+2 scrap iron grippers, European style grab wooden clips, six or four piece scrap iron waste grippers, and various other grippers. You can also choose between hard or soft connected gripper forms to increase work flexibility.

ZM-5800A Truck Mounted Timber Grab Advantage

1. A new generation lightweight platform with a high starting point;

2. High quality hydraulic key components to enhance product competitiveness;

3. Multiple optional configurations to easily meet personalized customization needs;

4. Compact structure, flexible operation, fast speed, high efficiency, application of high-strength steel, lighter weight of the whole machine;

5. The variable amplitude mechanism has a main arm with a negative angle of 20 ° and two arms with a negative angle of 65 °, with a wide range of applications and flexible operation;

6. Advanced hydraulic system to improve the working speed of the entire machine and achieve the functions of anti vibration and multi action linkage of the lifting arm;

7. Optional wireless remote control control system for more convenient operation;

8. The hydraulic valve lock adopts high-quality brands for higher reliability;
