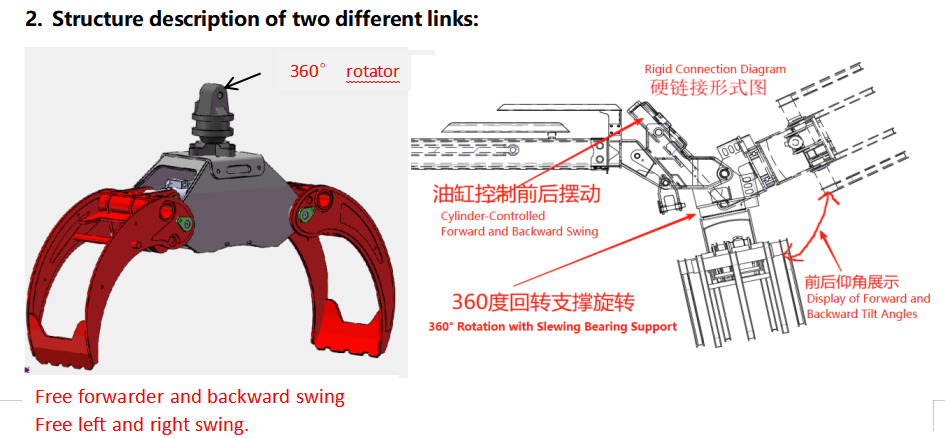

Features of different connect way of Grapple

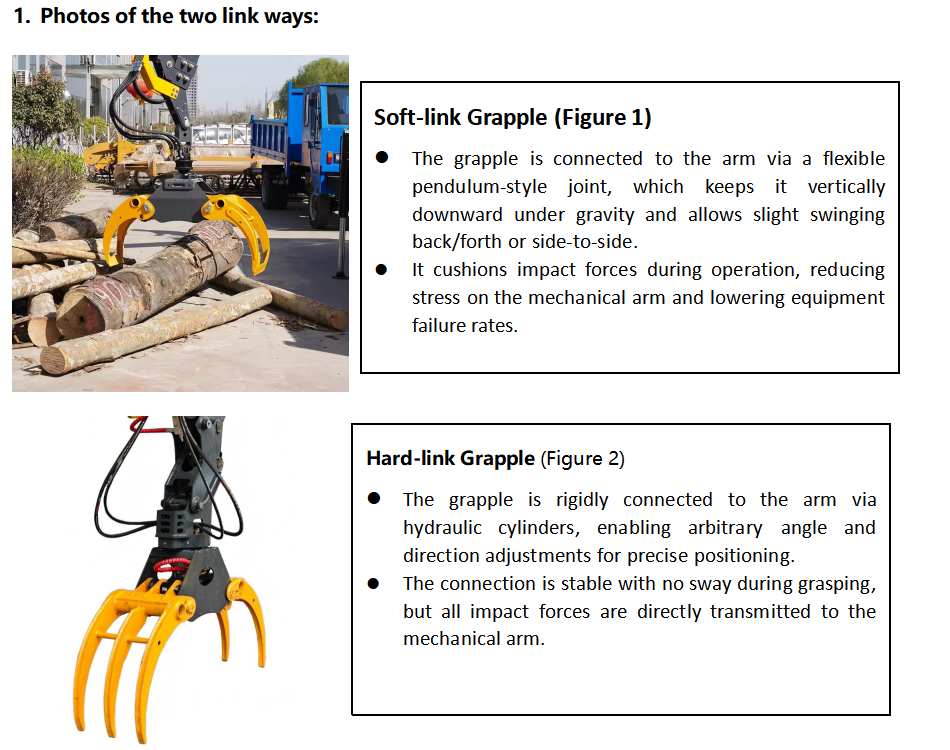

Soft-link vs. Hard-link Grapple: Key Differences & Selection Guide



Aspect

Soft-link Grapple

Hard-link Grapple

✅ Advantages

1.Simple operation, no frequent angle adjustment needed, high work efficiency

2.Stronger load capacity, more stable under long-arm conditions

3.Shock absorption and load relief, longer equipment lifespan & lower failure rate

1. Adjustable angle, precise positioning, ideal for precise stacking or special posture operations

2. No sway during grasping, suitable for scenarios requiring high stability

❌ Disadvantages

1. Fixed angle, unable to tilt for grasping or precise placement

2. Slight sway may affect stability at high operating speeds

3. Repeated angle adjustments required, cumbersome operation & low efficiency

1. Impact forces directly act on the arm, more vulnerable parts & shorter lifespan

2. Significantly reduced load capacity under long-arm conditions


3..Application Scenarios


Choose Soft-link First If:

n You need efficient routine operations like timber loading/unloading or bulk material handling.

n You use a long telescopic boom truck-mounted grapple or vehicle-mounted timber grab.

n You prioritize cost-effectiveness and low maintenance costs.

·

Choose Hard-link First If:

n You need precise material placement (e.g., stacking, grasping at special angles).

n You perform fine operations with a short arm at a fixed station.

n Positioning accuracy is far more important than operational efficiency.
