GD-5800B Hydraulic Rotating Timber Grab

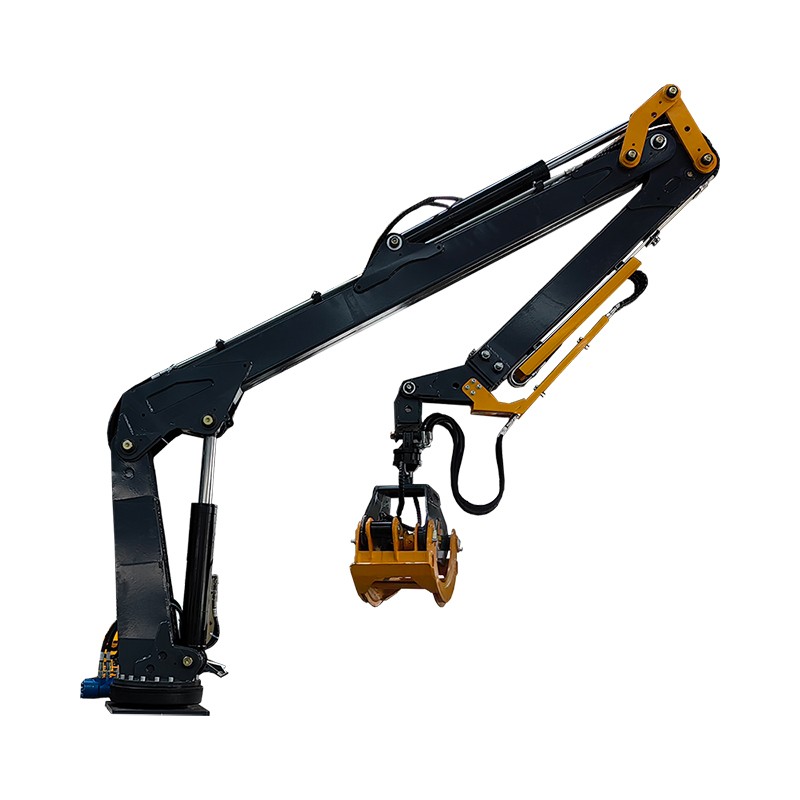

ZM-5800 Hydraulic 360°Rotating Timber Grab - 副本

Maximum lifting weight (kg)：1530
Arm extension length (m)：5.8
Rotation angle (°)：360 (rotation)
Rated working pressure (MPa)：21
Luffing angle (°)：-25 to+80

INQUIRY

Product Details

Product Tags

ZM-5800B Hydraulic Rotating Timber Grab Parameter

Product model	ZM-5800B
Maximum lifting weight (kg)	1530
Arm extension length (m)	5.8
Maximum lifting weight of fully extended arm (kg)	780 (excluding the weight of the gripper)
Number of rotating oil cylinders	4 pieces (Italian imported oil seals)
Number of boom expansion joints	1
Maximum working radius (m)	5.8
Maximum lifting height (m)	6.9 (Distance from crane support surface)
Luffing angle (°)	-25 to+80
Rotation angle (°)	360 (rotation)
Rotation speed	1.8-2.5r/min
Rated working pressure (MPa)	21
Rated flow rate (L/min)	40
Hydraulic heat dissipation system	380V high-strength air-cooled
Grip form	Optional
Grip opening (mm)	1300-1600 optional
Machine operation mode	One control two or one control three (optional)
Total weight of the machine (kg)	1100
Grip rotation angle (°)	360 (unlimited)

Optional according to user usage:

1. On board use: Two hydraulic support legs (installed on the vehicle and used for on board work).

2. Fixed use: equipped with an 11 kW 380V motor (Hz can be selected according to the country) and a hydraulic pump station. Used for fixing to the side of equipment or the site to grab materials, loading and unloading, etc.

GD-5800B Hydraulic Rotating Timber Grab Introduction

A hydraulic telescopic arm with a foldable arm frame and one retractable section, which can freely extend and retract under load.

1. Equipped with a gear rack and oil cylinder rotation mechanism, the rotation torque is greater, the speed is smoother and faster than traditional planetary rotation reducers, the impact resistance is durable, and there is no shaking;

2. All movements of the boom, boom extension, boom rotation, and leg lifting are equipped with locking valves to increase safety protection;

3. In vehicle use: equipped with two hydraulic support legs, installed on the vehicle to work with the vehicle.

4. Fixed use: The motor is selected as 380V, 11 kW, and 50Hz. (The motor can be customized according to the voltage and frequency of the user's country).

5. Select domestically produced gear oil pumps; Equipped with a 40L/min high displacement pump system, it improves work efficiency and can achieve synchronous operation.

6. The control valve group should be operated by a well-known domestic brand's one control two or one control three operation series; The high flow control system greatly improves work ability and stable handling.

7. This device can be equipped with various grippers, with an opening of up to 1.3-1.8 meters. The gripping effect is more prominent, and the gripper can rotate continuously 360 °;

8. High power hydraulic radiator effectively controls hydraulic oil temperature and increases continuous operation capability.

9. Equipped with a standard 100L hydraulic oil tank, the enlarged tank provides better heat dissipation, and is equipped with a high-pressure filter to enhance the filtering effect of hydraulic oil.

10. Equipped with maintenance valves, main arm oil cylinder balance valves, secondary arm oil cylinder balance valves, rotary balance valves, and multi way valves for overall control;

GD-5800B Hydraulic Rotating Timber Grab Advantage

1. A new generation lightweight platform with a high starting point;

2. High quality hydraulic key components to enhance product competitiveness;

3. Multiple optional configurations to easily meet personalized customization needs;

4. Compact structure, flexible operation, fast speed, high efficiency, application of high-strength steel, lighter weight of the whole machine;

5. The variable amplitude mechanism has a main arm with a negative angle of 20 ° and two arms with a negative angle of 65 °, with a wide range of applications and flexible operation;

6. Advanced hydraulic system to improve the working speed of the entire machine and achieve the functions of anti vibration and multi action linkage of the lifting arm;

7. The hydraulic valve lock adopts high-quality brands for higher reliability;

8. Due to different operating conditions, installation sites, or vehicles, customization can also be accepted according to user technical requirements.

GD-5800B Hydraulic Rotating Timber Grab Performance Table
