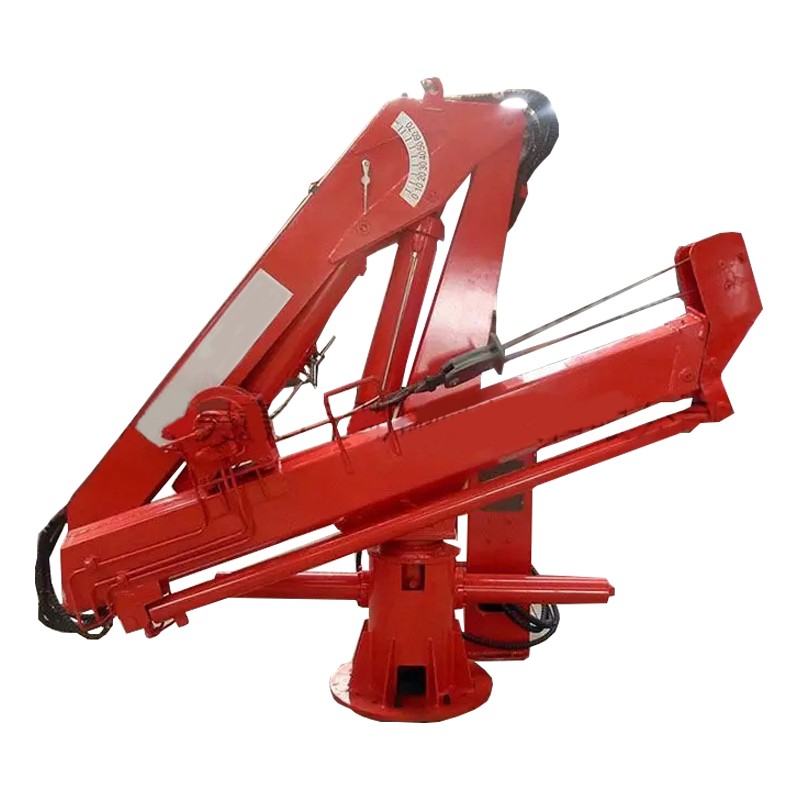

3 Ton Folding Boom Marine Crane

Maximum lifting capacity：5000kg
Max lifting moment：10T.m
Maximum lifting height：9.5m
Recommended power：22kw
Maximum working range：8.2m

INQUIRY

Product Details

Product Tags

3 Ton Folding Boom Marine Crane Parameter

Product Number	MNK-CZ500-5
Maximum lifting moment	128KN.m
Maximum lifting capacity	5000kg
Number of boom telescopic sections	5
Maximum working range	13.5m
Maximum lifting height	15.5m(Distance from crane support surface)
Amplitude angle	1~80°
Rotation angle	360° full rotation
Rotation speed	1.2~1.5r/min
Rated working pressure	28Mpa
Rated flow rate	40L/min
Rated working pressure	2300kg

Why Buy the 3 Ton Folding Boom Marine Crane

The 3 Ton Folding Boom Marine Crane is reliable due to its advanced development and features. The crane has a compact design, has a greater load ratio, and is lighter. It also has a rack cylinder that adopts an inclined arrangement. Additionally, the crane’s boom is designed in a folded state, which minimizes the space used and makes the crane more compact.

Additionally, the crane’s folded design lowers the vehicle’s center of gravity and makes it more stable when driving. Also, the crane is designed for operators to make quick and easy adjustments according to the customer’s needs. It also comes with great after-sales service, whereby our customer care replies quickly to customer feedback questions.
