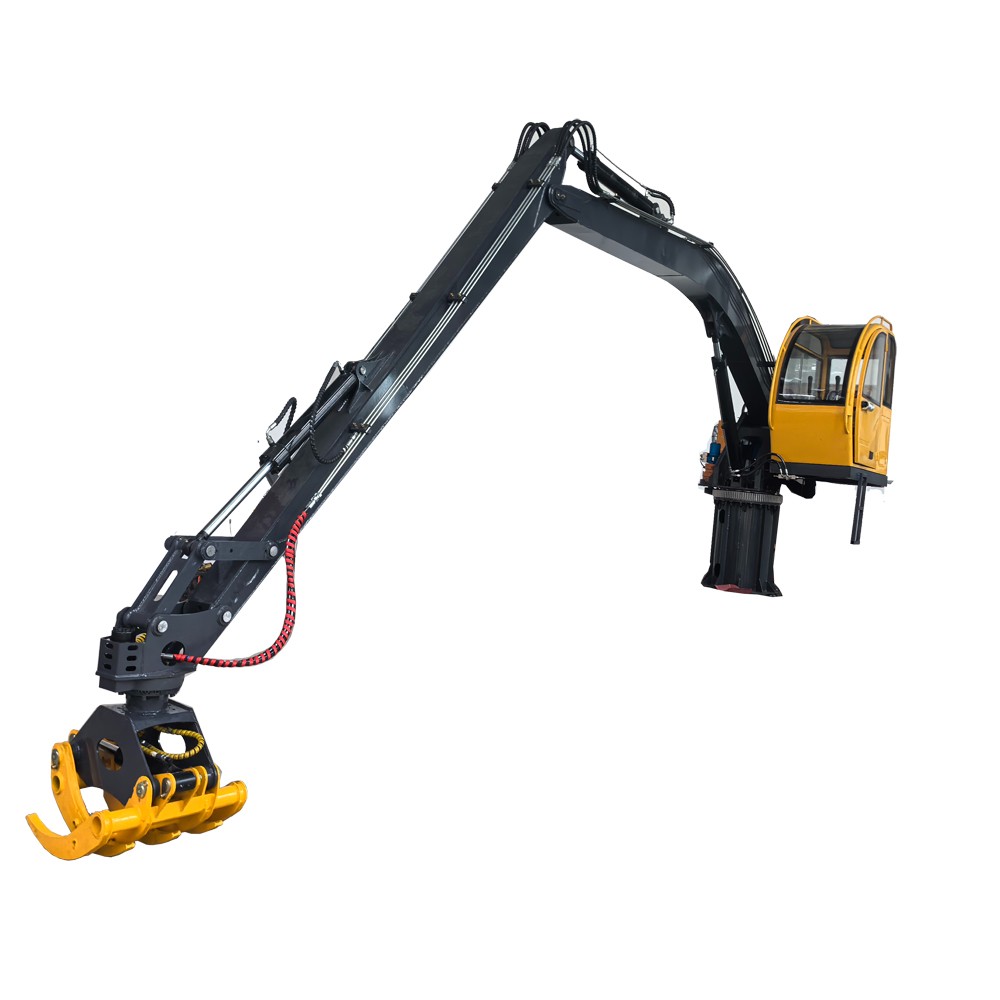

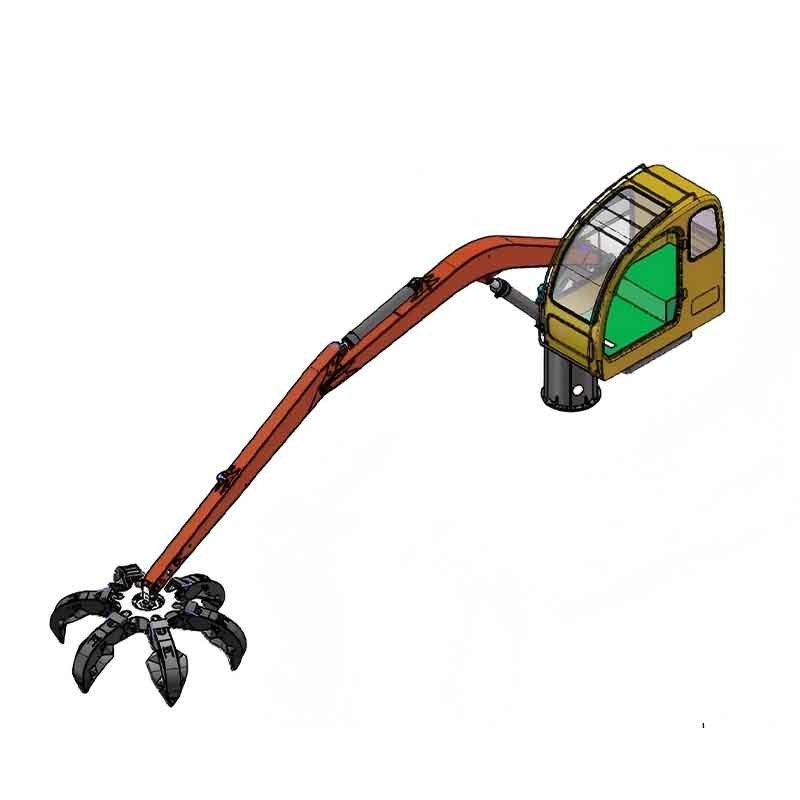

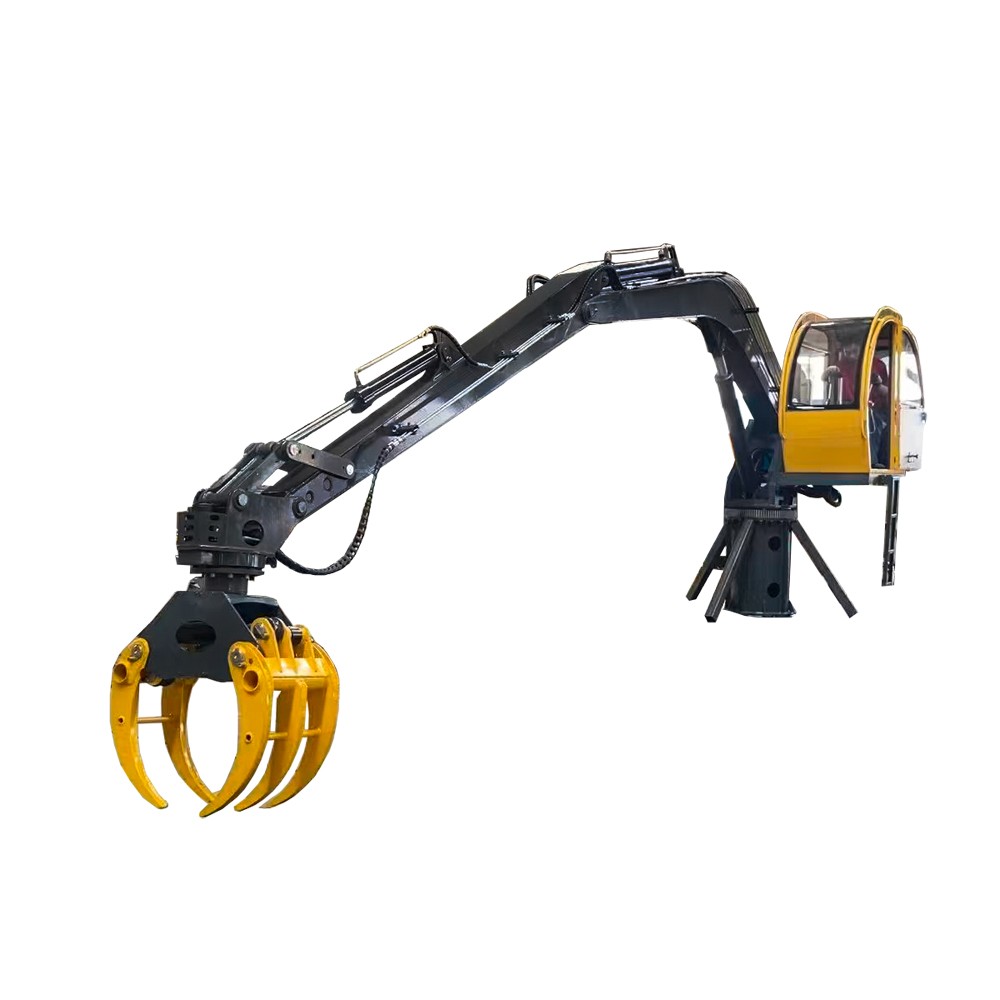

Light duty Stationary Base 8M 1 Ton Electric Grab Crane

Light duty Stationary Base 8M 1 Ton Electric Grab Crane
Max Lifting Capacity(full extended): 1 ton
Boom Length: 8M

Product Details

Product Tags

Light duty Stationary Base 8M 1 Ton Electric Grab Crane

Parameter

Specification

Boom Type

Fixed boom – 2 section

Boom Thickness

6 mm

Boom Material

High strength steel BS700

Boom Length

7 m (7.5 m / 8 m customizable)

Clamp

3+2 fingers

Rated Lift Capacity (boom fully extended)

1000 kg

Bearing Ring

1000 mm

Tank Capacity

150 L

Max. Lift Torque

80 kN·m

Rotation

360°

Electric Motor Power

15 kW – 22 kW

Weight

2000 kg

Hydraulic Flow Rate

50 L/min

Hydraulic Pressure

23 MPa

Cab

Ordinary cab

Oil Cylinder

Variable amplitude cylinder
