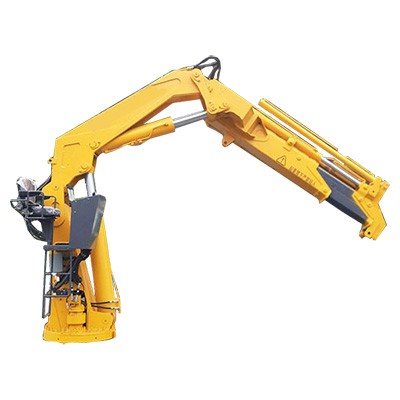

MNK-CZ1600-6 Knuckle Boom Marine Crane

Product Number：MNK-CZ1600-6
Maximum lifting Moment：300KN.m
Maximum lifting capacity：16000kg
Number of boom telescopic sections：6
Maximum working range：18.2m

INQUIRY

Product Details

Product Tags

You can rest assured to purchase a 16 ton folding boom marine crane from our factory, and we will provide you with the best after-sales service and timely delivery.

MNK-CZ1600-6 Knuckle Boom Marine Crane Specifications

Product Number	MNK-CZ1600-6
Maximum lifting Moment	300KN.m
Maximum lifting capacity	16000kg
Number of boom telescopic sections	6
Maximum working range	18.2m
Maximum lifting height	20.25m(Distance from crane support surface)
Amplitude angle	0~80°
Rotation angle	360° full rotation
Rotation speed	1.2~1.5r/min
Rated working pressure	30Mpa
Rated flow	50L/min
Crane self weight	≤4900kg

MNK-CZ1600-6 Knuckle Boom Marine Crane Features And Applications

1. Advanced development & analysis make sure design is very reliable

2. The structure design is more compact, lighter self-weight, greater load ratio, the whole line is reasonable, beautiful.

3. Rack cylinder adopted inclined arrangement, boom in folding state to make full use of space, compact overall structure, lower center of gravity and vehicle driving stability.

4. Independent design deform ability, various parameters of the whole crane can be adjusted according to customer requirements to meet customer needs, and new products can also be designed and manufactured.

5. Good after-sales service ability, can reply to customer feedback questions asap, and can send the accessories within 48 hours.

6. Wear-resistant slider: Use polymer nylon parts, free replacement for life, reducing the cost of use.
