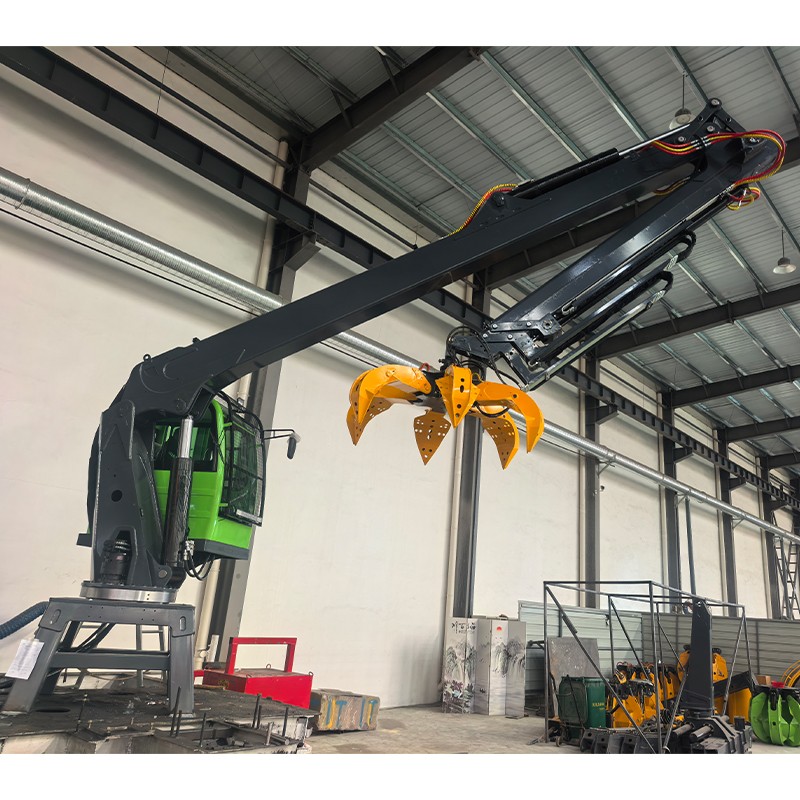

500kg Capacity 15m Telescopic Boom Grab Crane

Max. Lifting Capacity (full extended): 500 kg
Max. Lifting Moment: 130 kN·m
Recommended Power: 37 kW

Product Details

Product Tags

15M Telescopic Boom Grabbing Crane

1. High-power automatic start-stop intelligent temperature control hydraulic radiator, hydraulic oil temperature is too high automatically open the cooling function, effective control of the hydraulic oil temperature, increase the continuous operation ability;
2. Standard with 180L hydraulic oil tank, the oil tank to increase the better heat dissipation, equipped with a high-pressure filter to increase the filtration effect of the hydraulic oil;
3. Equipped with holding valve, main arm cylinder balance valve, two arm cylinder balance valve, rotary balance valve and multi-way valve for machine control;
4. Equipped with high luxury shock absorbing seat, better operation vision and safer operation.

SpecificationValue
Max. Lifting Capacity (full extended)500 kg
Max. Lifting Moment130 kN·m
Recommended Power37 kW
Hydraulic System Flow80 L/min
Hydraulic System Pressure28 MPa
Oil Tank Capacity180 L
Slewing Angle360°
Grab Weight5600 kg
Installation Space2000 mm
Valve GroupLoad sensing multi-way valve
Grapple Type6-petal steel grapple
