SWL 4.5t-15m Straight Boom Marine Crane

SWL 4.5t-15m：Product Number
Basic boom length：15.8m
Maximum working radius：15m
Maximum working radius lifting capacity：4.5T
Maximum lifting height：17.3m

INQUIRY

Product Details

Product Tags

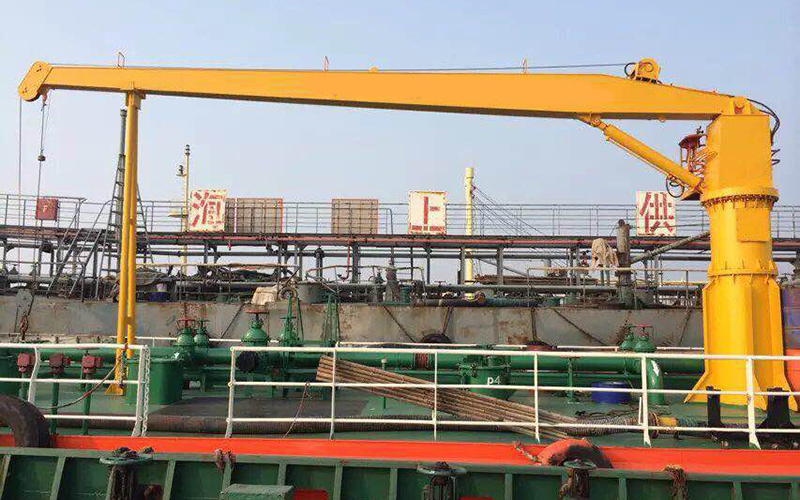

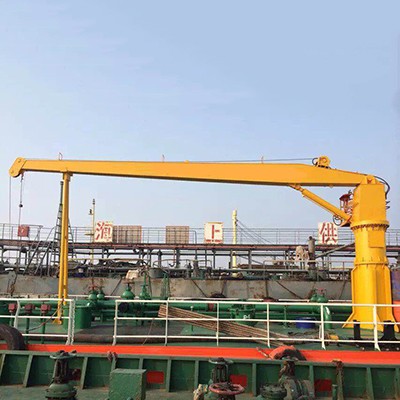

SWL 4.5t-15m Straight Boom Marine Crane is mainly installed as a marine crane for loading and unloading various goods on ships. It is the most important deck machinery and equipment for production operations on ships. It has the characteristics of compact structure: beautiful appearance, safety and reliability, energy saving and environmental protection, and good maneuverability. Although the straight arm crane occupies a slightly larger space in appearance, it is easy to maintain, has low cost and is highly adaptable. It has a heavy lifting capacity and a long span. If it is combined with a movable base, it can move freely in the cargo hold.

SWL 4.5t-15m Straight Boom Marine Crane Specifications

Product Number	SWL 4.5t-15m
Basic boom length	15.8m
Maximum working radius	15m
Maximum working radius lifting capacity	4.5T
Maximum lifting height	17.3m
Luffing angle	0~80°
Rotation angle	360° unlimited rotation
Rotation speed	1.3~1.6 r/min
Rated working pressure	25Mpa
Rated flow	40+50L/min
Flange base height	Customized according to user
Overall dimensions (length x width x height)	1650018002100mm
Installation space	1250x1250mm
Crane self weight	≥7300kg
