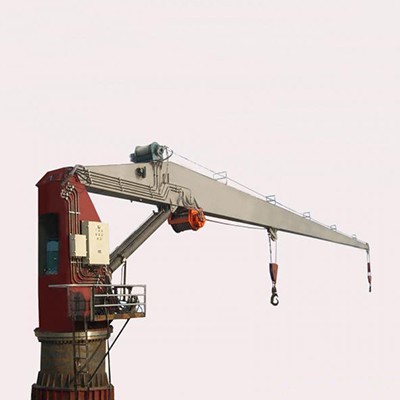

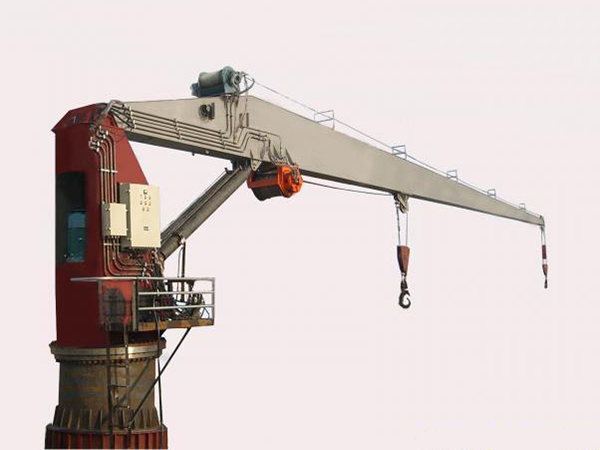

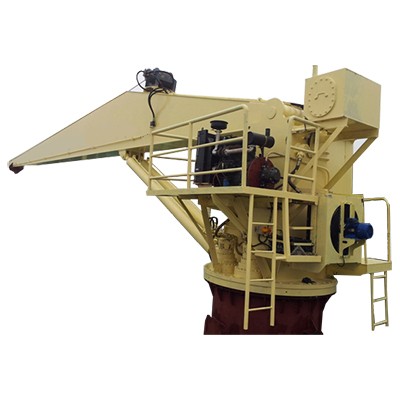

SWL 5t-25m Straight Boom Marine Crane

Product Number：SWL 5t-25m
Basic boom length：26.3m
Maximum working radius：25m
Maximum working radius lifting capacity：5T
Maximum lifting height：27.3m

INQUIRY

Product Details

Product Tags

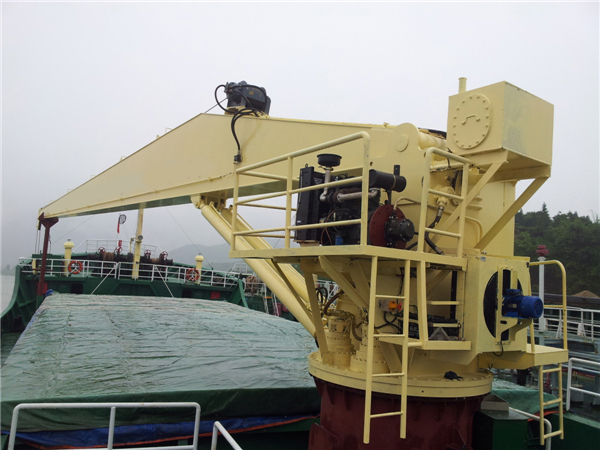

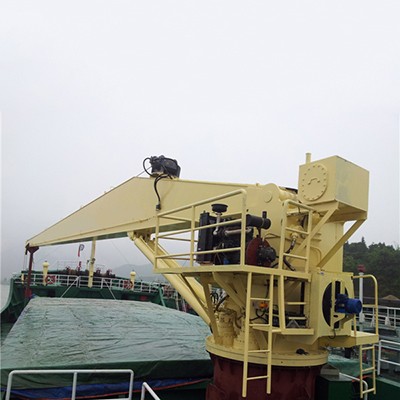

SWL 5t-25m Straight Boom Marine Crane is mainly installed as a marine crane for loading and unloading various goods on ships. It is the most important deck machinery and equipment for production operations on ships. It has the characteristics of compact structure: beautiful appearance, safety and reliability, energy saving and environmental protection, and good maneuverability. Although the straight arm crane occupies a slightly larger space in appearance, it is easy to maintain, has low cost and is highly adaptable. It has a heavy lifting capacity and a long span. If it is combined with a movable base, it can move freely in the cargo hold.

SWL 5t-25m Straight Boom Marine Crane Specifications

Product Number	SWL 5t-25m
Basic boom length	26.3m
Maximum working radius	25m
Maximum working radius lifting capacity	5T
Maximum lifting height	27.3m
Luffing angle	0~80°
Rotation angle	360° unlimited rotation
Rotating moment	98KNm
Overturning moment	900KNm
Rated working pressure	28MPa
Rated flow	50+63L/min
Flange base height	Customized according to user
Overall dimensions (length x width x height)	2770025502300mm
Installation space	2400x2400mm
Crane self weight	≥9100kg
